Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 98

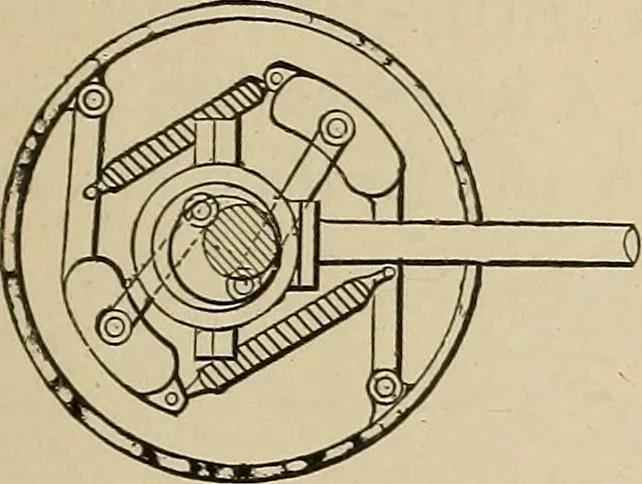

316. PULLEY OR FLYWHEEL GOVER-NOR, Sweets.—The eccentric moves towardthe centre by the centrifugal action of theweight restrained by the spring through theconnecting link. STEAM POWER. 89 … 317. CRANK-SHAFT GOVERNOR.— The centrifugal action of the weights, bal-anced by the springs, shifts the position ofthe inner eccentric to vary the throw of themain eccentric.
Mechanical movements
