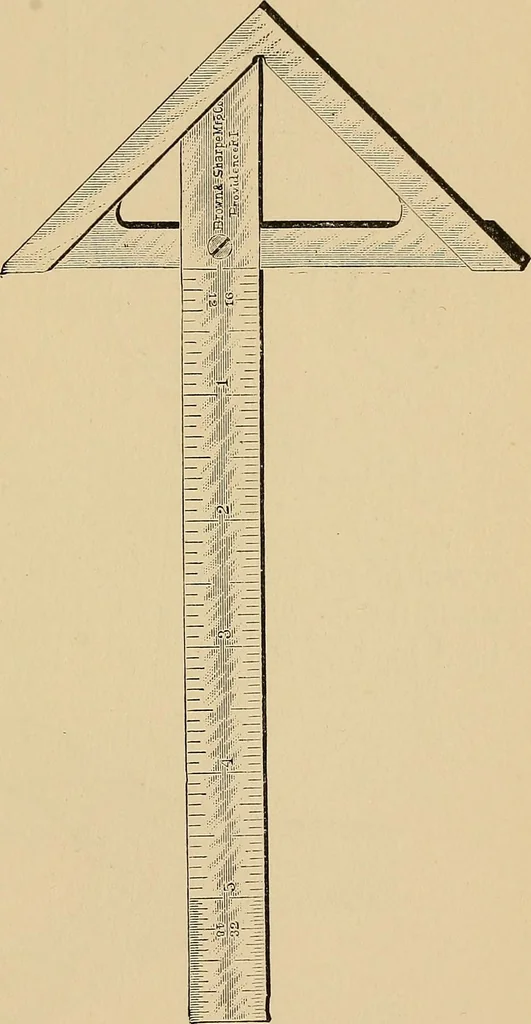

es, which all de-pend upon the same principle,is perhaps the most accuratetool for centering a rod.The square is made withthree arms, with the centrearm bisecting the angle madeby the other two. When inuse, the rod is placed in thefork or angle, and a linedrawn across the end of therod by the aid… … Fig. 177. 192 METAL-WORK often used for centering work. The vee blocks are laid on theplate with the bar resting in the vee notches. The scriberis then fixed as nearly as possible to the centre of the bar from the surface of the plate,and a line scribed. Thebar or rod is then turneda quarter -…
