Metal-work; a handbook for teachers and students (1914)
Adam, Hugh M. [from old catalog], Evans, James Humphrey, [from old catalog] joint author · New York, Longmans, Green and co.; London, E. Arnold · leaf 276

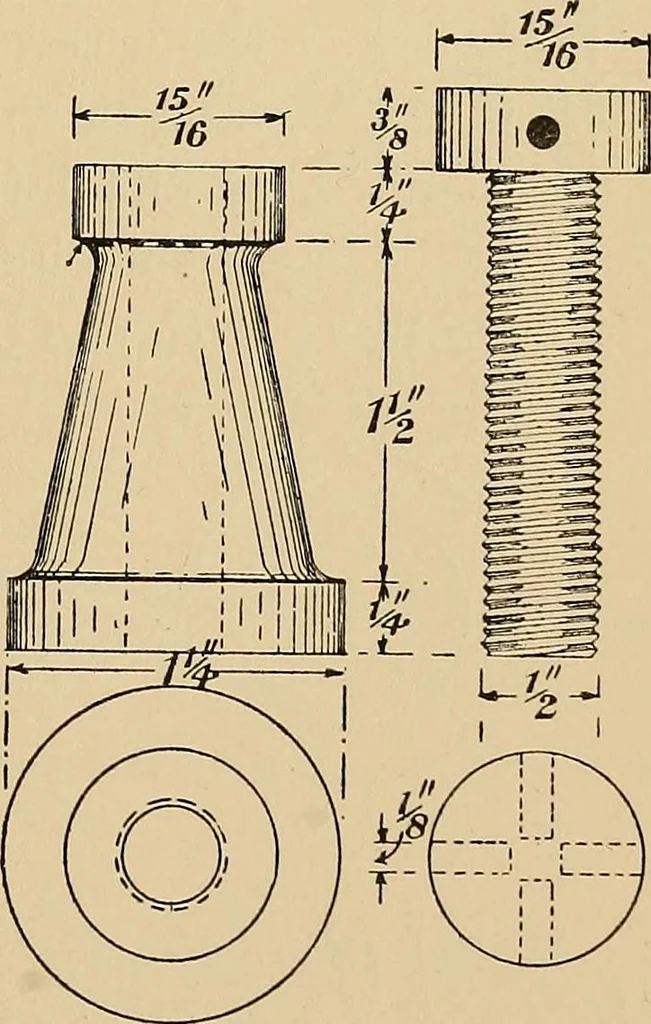

: Mild-Steel.—Cut off a short bar of mild-steel about \ inch greater in dia-meter and 1 inch longer than thefinished model. Centre the bar asmentioned in the chapter on LatheWork, and fix up the bar in thelathe; and, working from the deadcentre, turn down about If inchesof the length to \ inch… … Model 15. Model 16. 260 METAL-WORK pin to a J-inch standard nut with the stock and dies. Sawoff the waste metal, allowing about Jg inch, which is bestremoved by holding the screw in a lathe chuck and taking acut across the head, thus leaving the top face dead squarewith the centre line. Mark out…
Metal-work
