Methods of machine shop work : for apprentices and students in technical and trade schools (1914)
Halsey, Frederick A. (Frederick Arthur), 1856-1935 · New York : McGraw-Hill · leaf 283

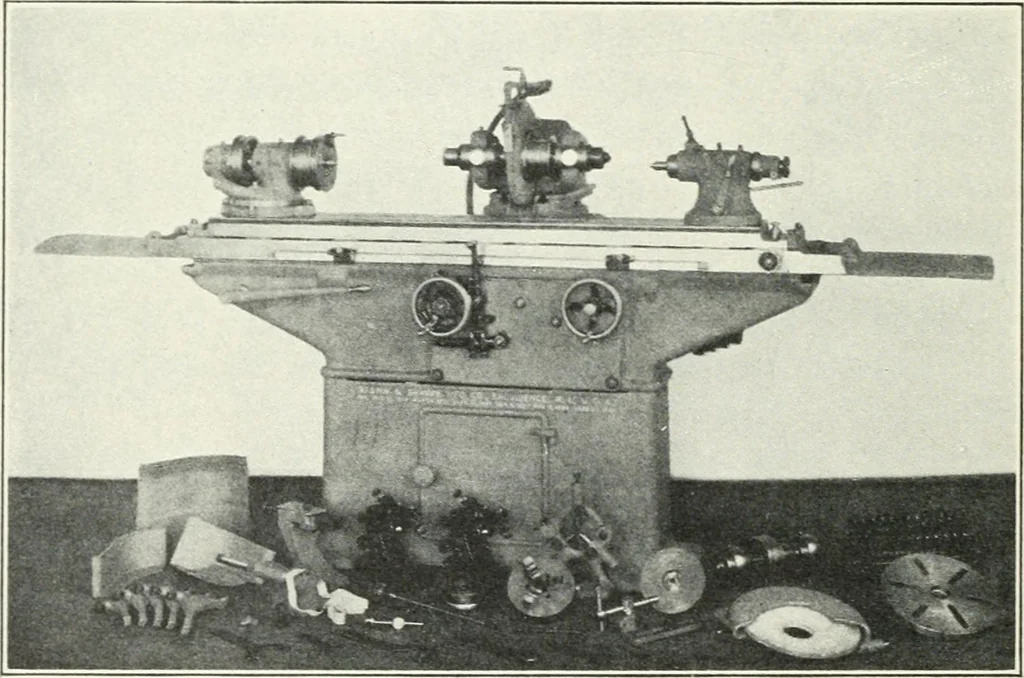

Fig. 274.— Plain grinding machine. … Fig. 275.—Universal grinding machine. Three methods of making adjustments for angular grindingare provided. Tapers of small angle are most frequentlyobtained by the swivel adjustment of the work table on the GRINDING 273 main slide as shown in Fig. 276. More abrupt tapers areobtained bv the swivel…
Machine-shop practice
