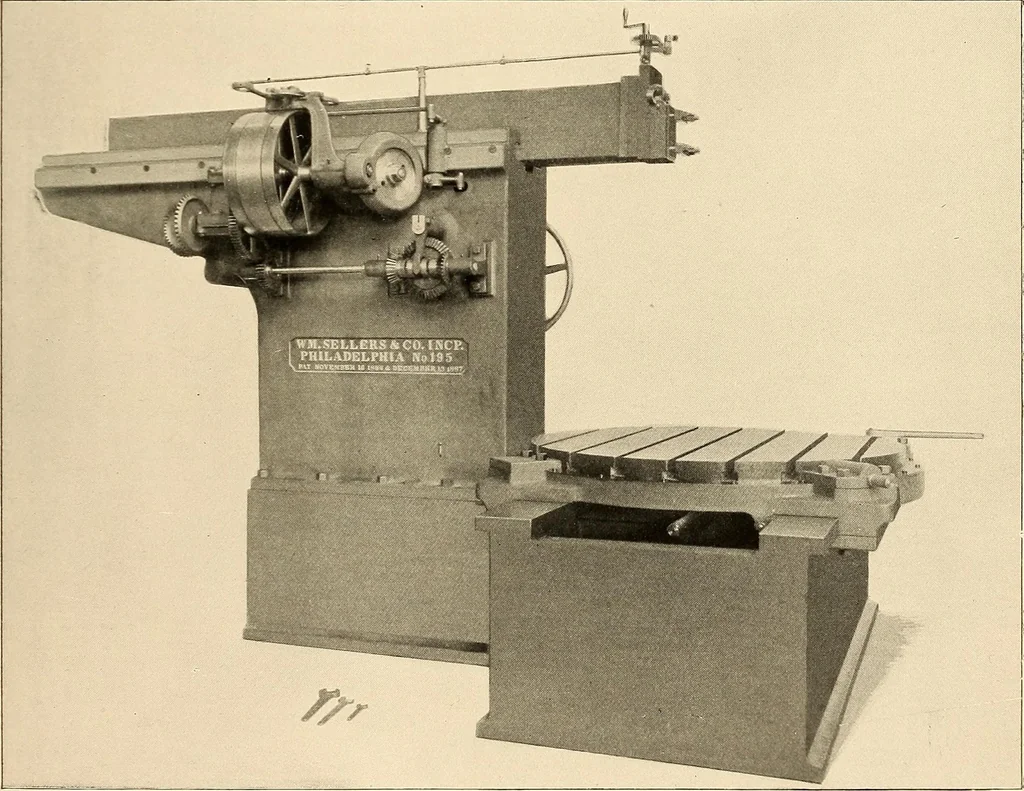

quickly. One of the centres is adjustable in height for taper work.The diameter of the circle which will swing between the centres is equal to thenominal capacity of the sliaper. SINGLE SHAPERS—USUAL sizes. Size and Length toPlane. Total Lengthof Bed. Countershaft Pulleys. Stroke. Size. Speed. 9 36… … CYLINDER SHAPER. For planing valve seats and ports on locomotive cylinders. Stroke adjust-able to 48 maximum. Bar operated by spiral pinion and rack like our planers.Has quick return at four times the cutting speed. Circular table 5 ft. diameter, has4 ft. traverse on bed. Height from table to…
