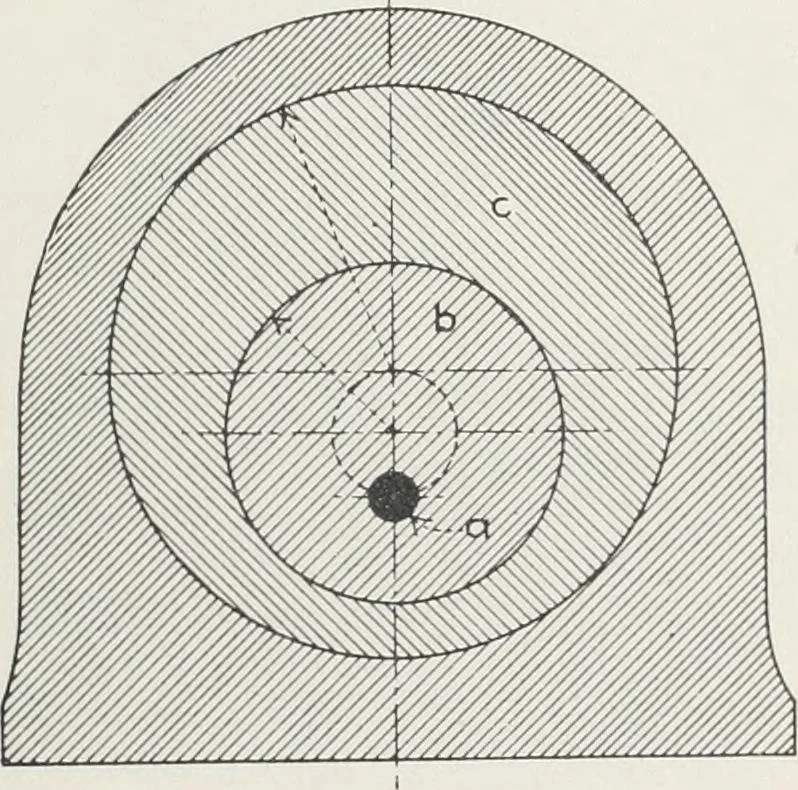

chment and a connectingbelt are put in place all as shown in Fig. 279, the work being car-ried in a chuck. For internal taper grinding the head stock isprovided with a swivel adjustment of which no special view isshown. THE PLANETARY GRINDING MACHINE In the grinding machine as so far described the… … Fig. 282.—Principle of the planetary grinder. for work of this type the planetary grinder was developed by theHeald Machine Company. A machine of this type, arrangedfor the grinding of the internal surface of automobile cylinders,is shown in Figs. 280-281. The diagram, Fig. 282, shows the mounting…
