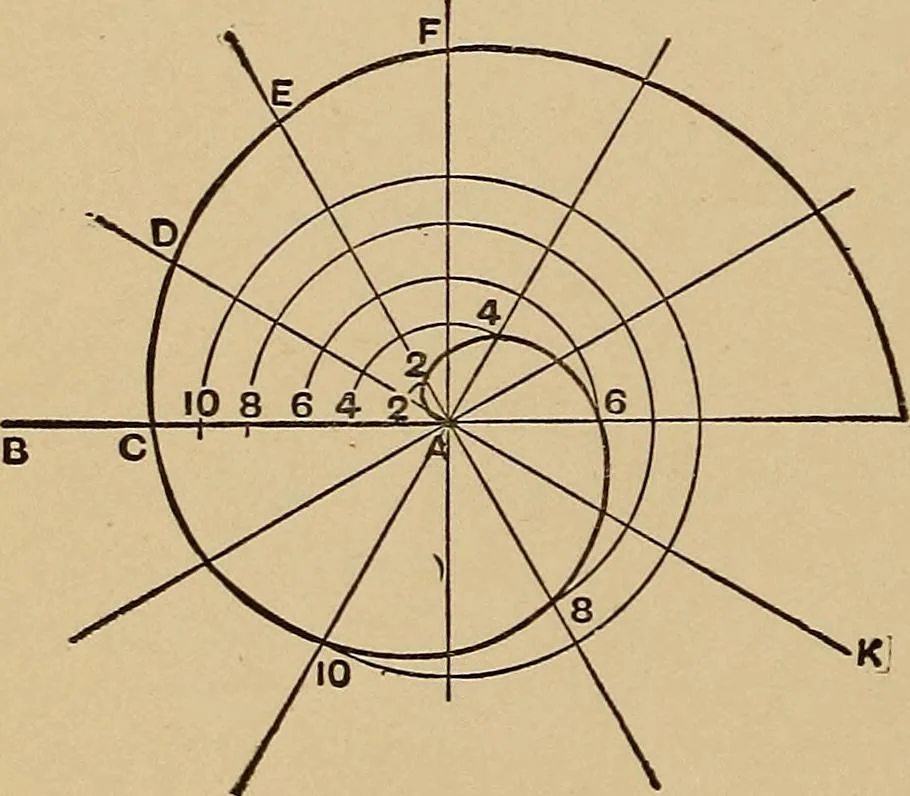

pitch of the screwand divide by the product of the power by 6.2832. P=Lifting power of jack. R=Length of lever.F=Force required at end of lever.N=Nuniber of threads per inch of jack screw. P=6.283(NXEXF)P F= N= 6.283 (RXF) R= 6.283 (NXR) P6.283(NXF) THE DEVELOPMENT OF CURVES The Spiral is a curve… … Fig. 124—The Spiral of Archimedes. extremities. A, as an axis. Also, conceive a pointfree to move on this line. Three classes of linesmay now be derived in the following manner: Ifthe line be stationary and the point moves, a straight line will be generated. If the point bestationary and the line…
