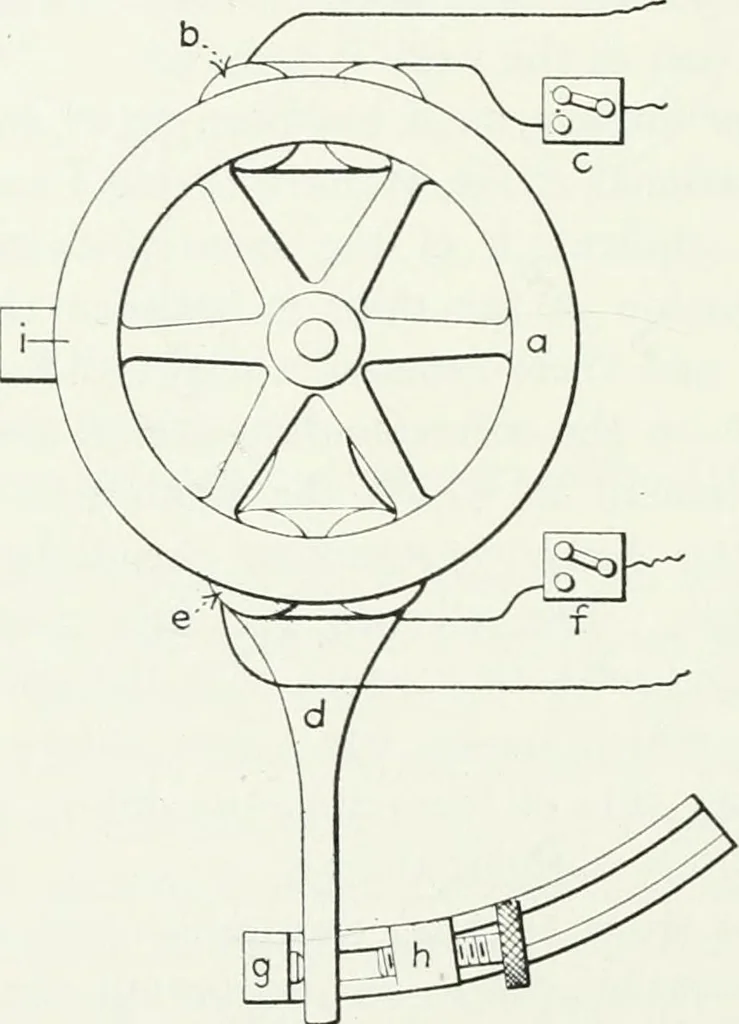

ny methods of producing precision index plates have beenused and. of these, it is only possible to show here two whichare selected in order to indicate the leading methods of at-tack, of which other plans are, to a large extent, variations. THE STEP-BY-STEP METHOD OF ORIGINATING INDEX PLATES Fig.… … Fig. 41.—First method of originating index plates. The wheel a to be divided, which must be of iron, has belowit and in light rubbing contact with it, an electro magnet bfitted with a switch c by which it may be energized and de-energized. Swinging about the center of the wheel is an armd carrying…
