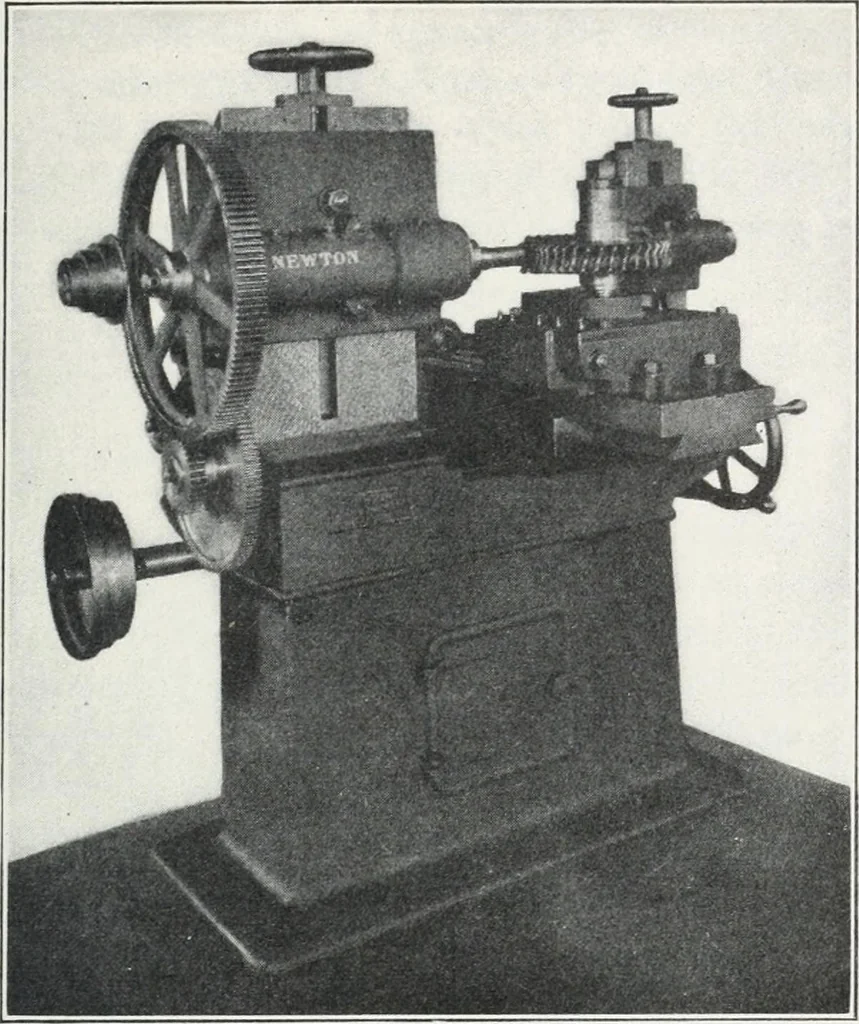

ch carries the blank operated upon, andthere is the same necessity for precision workmanship in thisworm wheel as in index plates. A method of constructing theseworm wheels has come down to us from early times and is stillin use. The work is done upon a bobbing machine which it is firstnecessary to… … Fig. 43.—Worm wheel bobbing machine.
