Ernst Leitz (Firm) · Wetzlar ; New York : Ernst Leitz · leaf 63

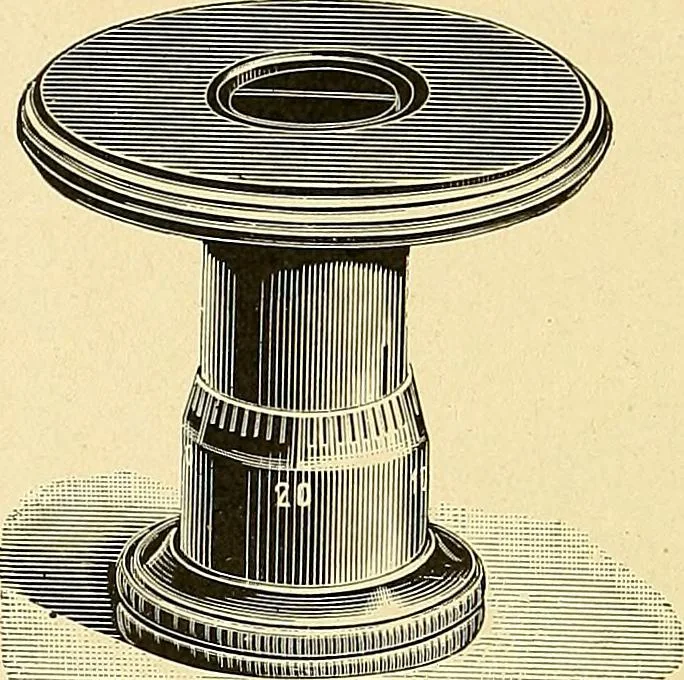

to the table. The object is heldin a movable clamp (25x30 mm) raised by means ofa micrometer-screw. The movement is regulated by amicrometer-disc divided into 50 parts representing each0.01 mm. The position of this disc is marked by apointer. The knife is guided freely by hand and incutting is… … Cylinder Microtome, No. 93. No. $ 93. The preparation is fixed in a cylinder which can bescrewed 25 mm below the surface of the stage. Thiscylinder has a diameter of 22 mm. The cylinder israised by means of a micrometer-screw with dividedhead accurately indicating 0.01 mm. In cutting, theblade of…
Microscopy · Optometry · Equipment and supplies
