The microscopy of vegetable foods, with special reference to the detection of adulteration and the diagnosis of mixtures (1916)
Winton, Andrew Lincoln, 1864-1946, Moeller, Josef, 1848-1924, Winton, Kate Grace Barber, 1882- · New York, John Wiley & sons, inc.; [etc., etc.] · leaf 125

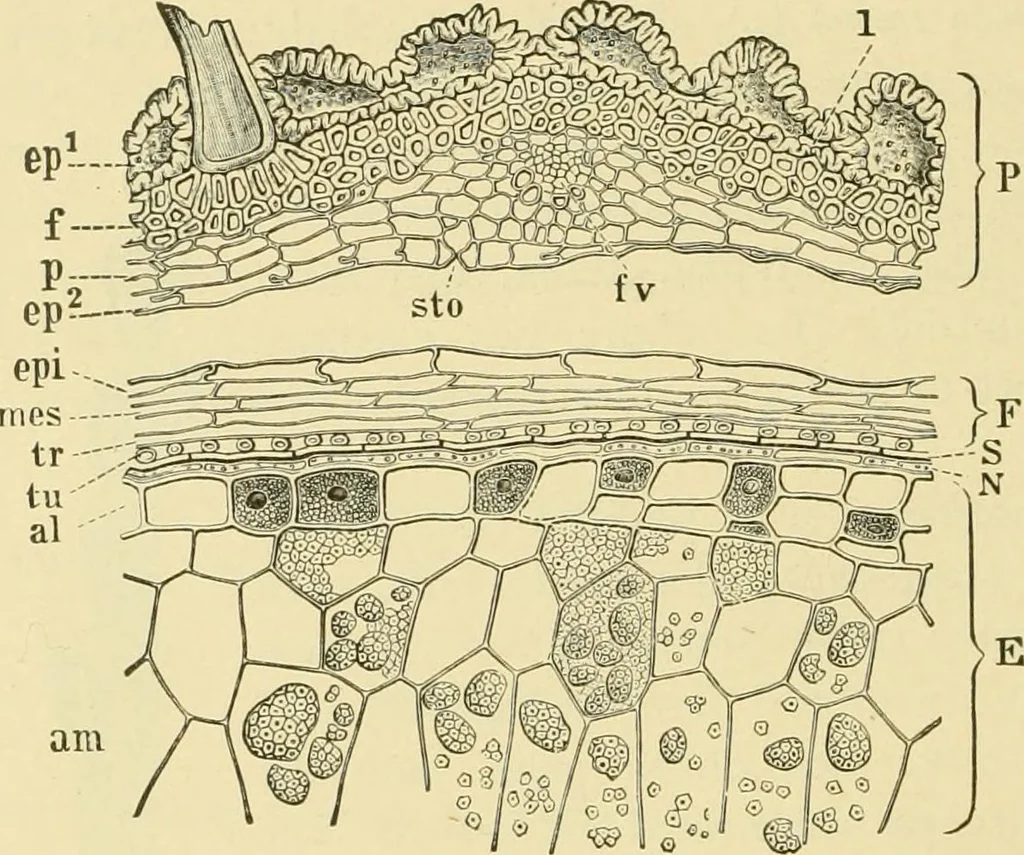

time in alkali. Maceration in Schulzes fluid serves to isolatethe elements. I. The Outer Epidermis (Figs. 73 and 74, ep^) consists of parallellongitudinal rows of large, thick-walled cells, square in general outline,with highly characteristic, very deeply sinuous side walls. Focusing onthe outer… … 1 Fig. 7v Rice. Cross section of palet and outer portion of fruit. P palet consists ofcp- outer epidermis with hair, / hypoderm fibers, p spongy parenchyma with fv bundle,and ep inner epidermis with sto stoma; F pericarp consists of epi epicarp, mes mesocarp,tr cross cells, and tu tube cells; 5…
Plant anatomy · Food adulteration and inspection · Microscopy
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
