The microscopy of vegetable foods, with special reference to the detection of adulteration and the diagnosis of mixtures (1916)
Winton, Andrew Lincoln, 1864-1946, Moeller, Josef, 1848-1924, Winton, Kate Grace Barber, 1882- · New York, John Wiley & sons, inc.; [etc., etc.] · leaf 285

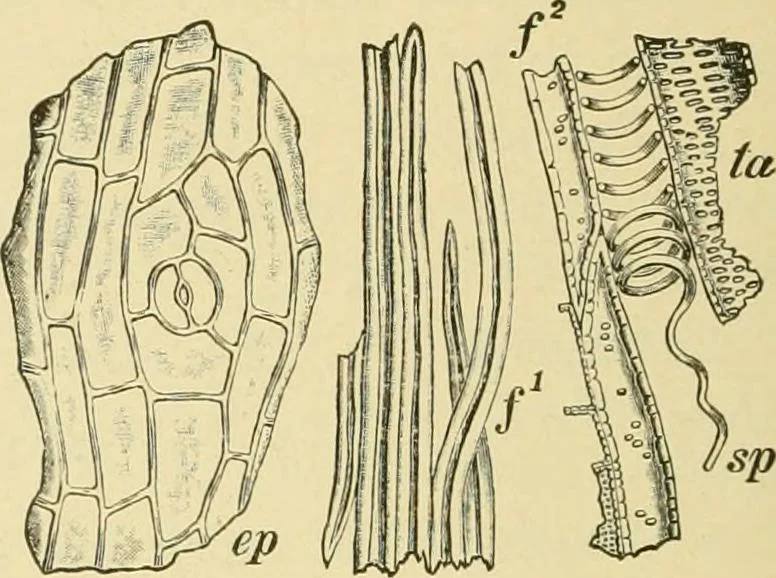

Fig. 220. Wldlla. {Mcdica saliva). I, leaf,Xi; II, flower, X3; III, seed, X3;IV, fruit, X3. (K. B. WiNTON.) … Fig. 220a. Alfalfa. Elements of stem insurface view, cp epidermis; /^ bastfibers; /^ wood fibers; sp spiral vessel;;<! pitted vessel. X160. (K.B.Win-ton.) flower (blue, yellow, green, and white) and in the number of pod coils,seeds and leaflets. HISTOLOGY. Stem. The elements (Fig. 220a) are not…
Plant anatomy · Food adulteration and inspection · Microscopy
