The microscopy of vegetable foods, with special reference to the detection of adulteration and the diagnosis of mixtures (1916)
Winton, Andrew Lincoln, 1864-1946, Moeller, Josef, 1848-1924, Winton, Kate Grace Barber, 1882- · New York, John Wiley & sons, inc.; [etc., etc.] · leaf 365

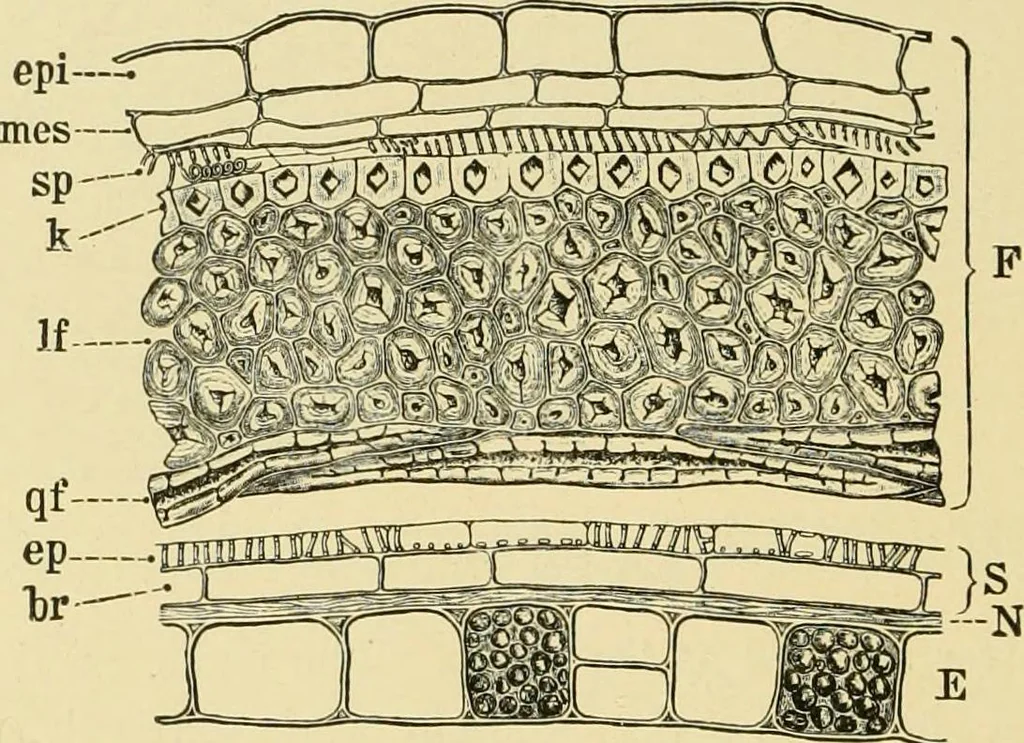

346 FRUIT. 5. Pith. Large berries often contain large intercellular spaces orcavities in the pith, formed by the tearing asunder of the cells during therapid growth. Pericarp (Fig. 258). i. Epicarp (epi). In surface view, the cellsare polygonal, 15-50 /( in diameter, with thin walls. The cuticle… … Fig. 258. Strawberry. Achene in transverse section. F pericarp consists of epi epicarp,mes mesocarp, sp spiral vessels, k crystal layer, // outer endocarp with longitudinallyextended fibers, and q} inner endocarp with transversely extended fibers; 5 spermodermconsists of ep epidermis with…
Plant anatomy · Food adulteration and inspection · Microscopy
