The microscopy of vegetable foods, with special reference to the detection of adulteration and the diagnosis of mixtures (1916)
Winton, Andrew Lincoln, 1864-1946, Moeller, Josef, 1848-1924, Winton, Kate Grace Barber, 1882- · New York, John Wiley & sons, inc.; [etc., etc.] · leaf 473

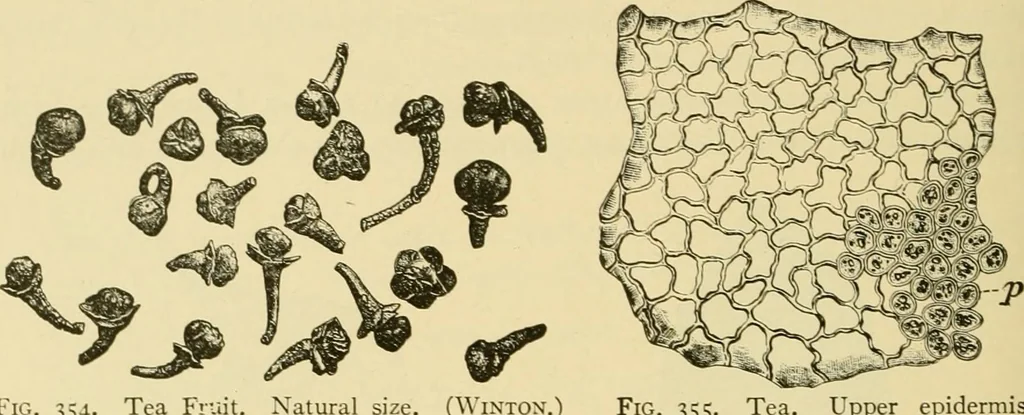

is globular or trian-gular, and has three cells, each containing a single seed. HISTOLOGY. Microscopic mounts are prepared after soaking or boiling with water.The Upper Epidermis (Fig. 355) consists of small (50 ft) cells withslightly wavy walls, without stomata or hairs. 454 ALKALOIDAL PRODUCTS.… … Fig. 354. Tea Fr Natural size. (Winton.) Fig. 355. Tea. Upper epidermisof leaf and p group of palisadecells, seen from below. X160.(MOELLER.) spongy, with large star-shaped branching cells (Fig. 356, m). Largecolorless stone cells or idioblasts (Fig. 357; Fig. 358, st) which are the…
Plant anatomy · Food adulteration and inspection · Microscopy
