The microscopy of vegetable foods, with special reference to the detection of adulteration and the diagnosis of mixtures (1916)
Winton, Andrew Lincoln, 1864-1946, Moeller, Josef, 1848-1924, Winton, Kate Grace Barber, 1882- · New York, John Wiley & sons, inc.; [etc., etc.] · leaf 86

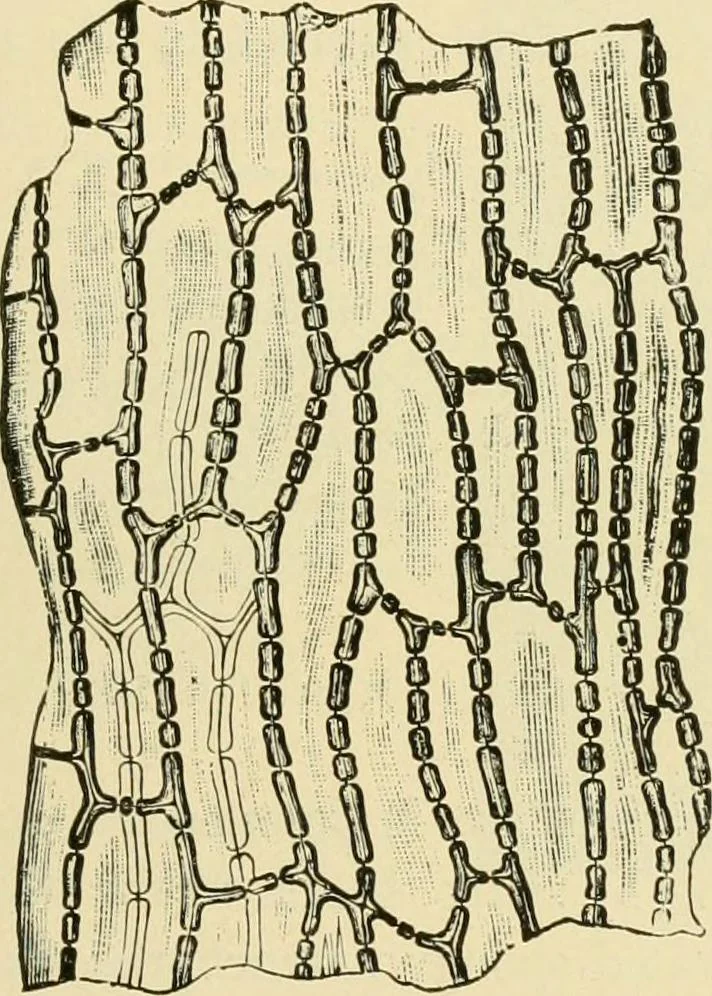

(Fig. 34, epi 1) are longitudinally elongated and are arranged end to end(but not side by side) in rows {epi 2), A thin cuticle covers the outerwall (Fig. T,T„ cut). In surface view, both the side and end walls appeardistinctly beaded, the double side walls being about 4/< thick. At theapex of… … Fig. 35. Wheat. Epicarp in surface Fig. 36. Wheat. Hairs from the apexview. X300. (MoELLER.) of the grain. X300. (Moeller.) are awl-shaped, with a more or less globular base, and, as Wittmackfirst noted, a narrow lumen or cell-cavity, the breadth of which is lessthan the thickness of the walls. 2.…
Plant anatomy · Food adulteration and inspection · Microscopy
