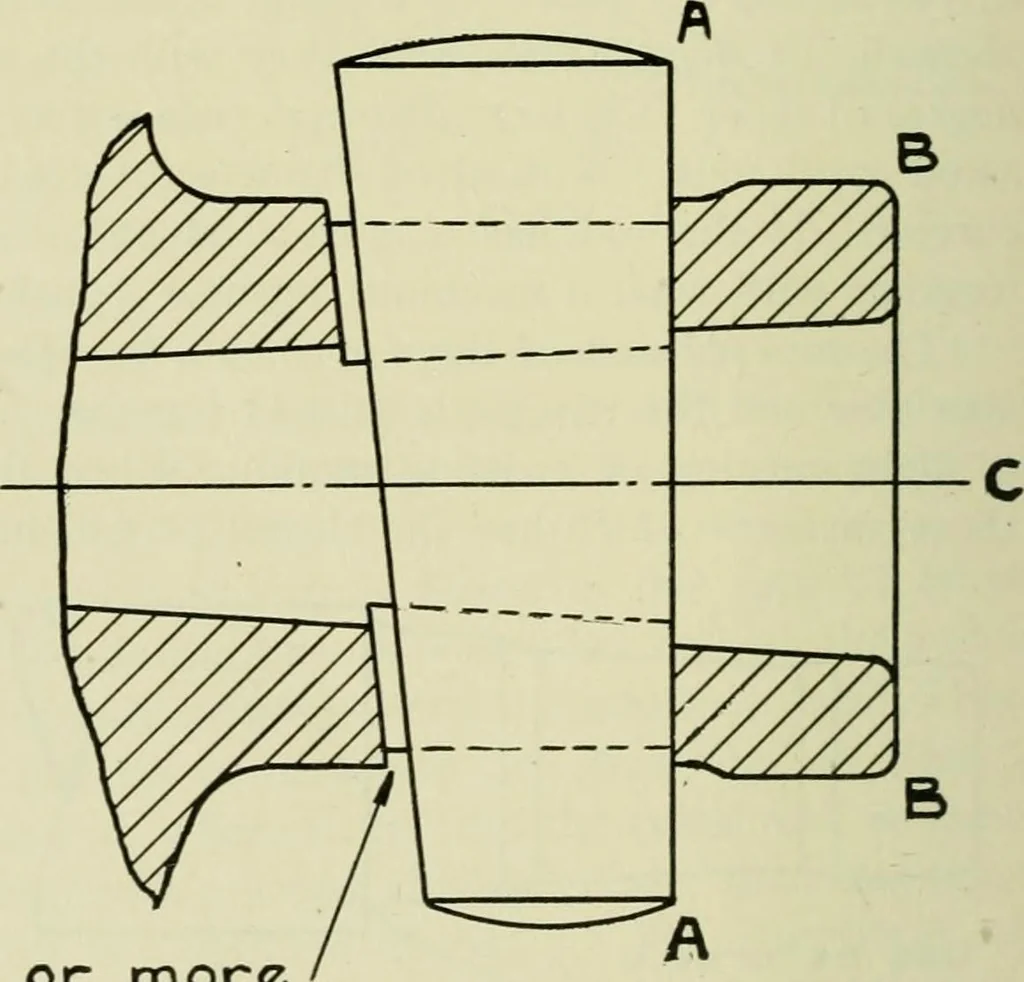

he shoulder on therod is brought up firmly against the crosshead. Note that it is wellto provide some clearance at the front end of the keyway in the rod.It will be sufficient to make this 1/32. While the posi-tion of the keywayin the rod may beobtained with com-parative ease itmust also be bornein… … Fig. 4. 16 or more the axis of the rodshould be meas-ured. This angularity should be the same as that given the key whenplaced in the crosshead and brought to bear against the straight,non-tapered side. If this is not done, the key, when the parts are I922.] THE LOCOMOTIVE. 39 assembled, will not…
