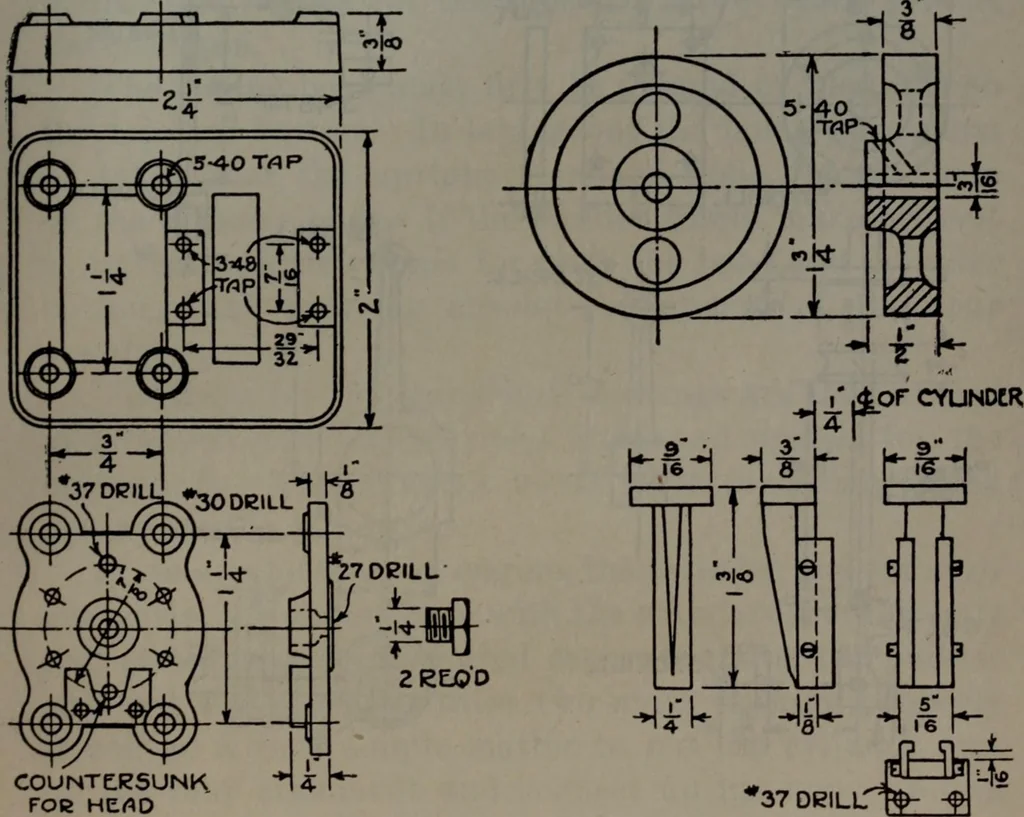

ot of work afterward whenthe cross head guide is fitted. All holes should now belaid out and drilled as per drawing and then fitted to the A Single-Cylinder Engine 149 cylinder. Now turn np the piston and make the pistonrod with the cross head, fit the cross-head guide to cylin-der base. Assemble… … COUNTERSUNKFOR H^(\0 37 DRILLFig. 104A—Details of the upright engine eccentric casting will also be found to have chuckingpieces cast on. First, put it in the chucks so that the %-inch diameter can be turned, then take the offset andput in the chuck, center same and drill it with a %6-inchdrill.…
