Machine drawing; a text and problem book for technical students and draftsmen (1921)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 74

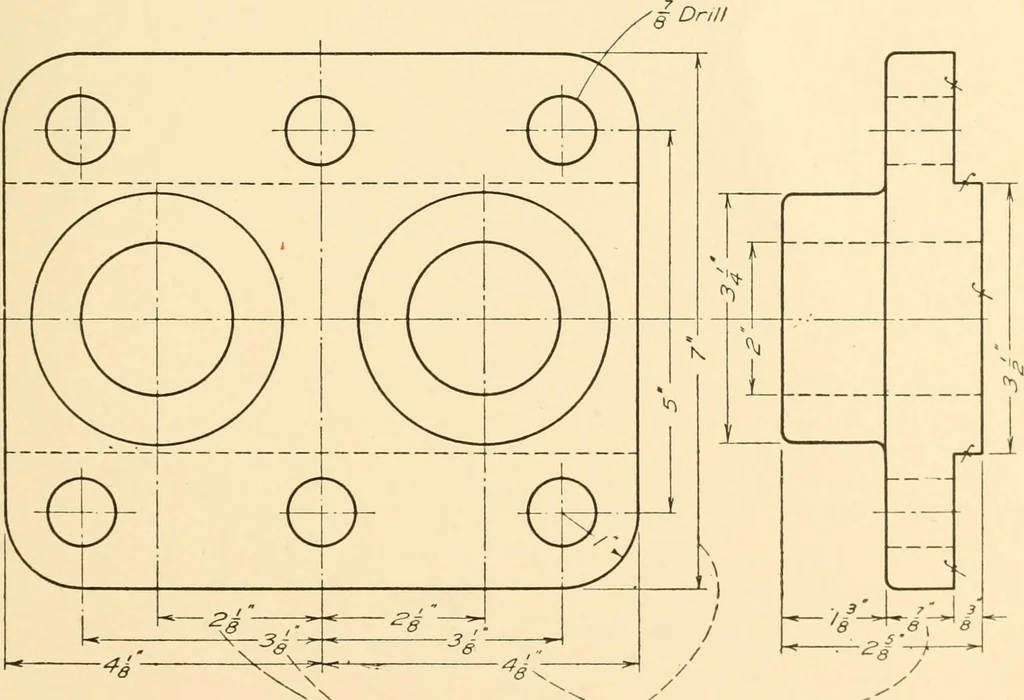

1- 1 \ i i 7 ., \ i i / k n Fig. 116. Size Dimensions. -^ 1 r u J Location dimensions are illustrated in Fig. 115, size dimensions inFig. 116 and the application of the elements in Fig. 117. Note the similarposition of dimensions, that each elementary part is dimensioned andits position fixed with… … ^Location Dimensions ^Size Dimensions- Fig. 117. Elements of Dimensioning Applied. 64 MACHINE DRAWING tion dimension where needed. The location dimension for cyhndricaland similar parts is given from the axis of the cylinder. 99. Location of Dimensions.—Facility in manufacture should be amotto in…
