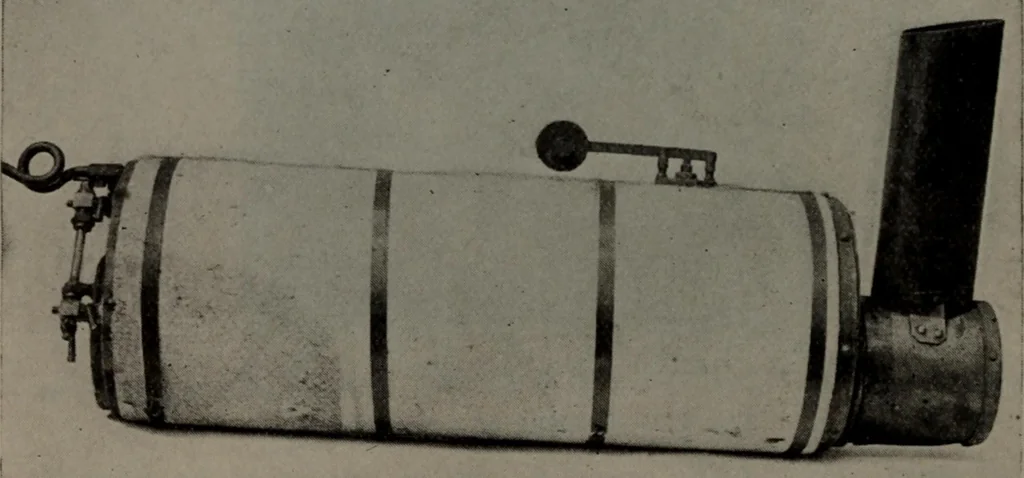

g tion is supposed to pertain to the construction of theboiler, rather than to be a eulogy of its fine points. The drum is a length of brass tubing 2Vi inches indiameter and 8% inches long. The holes for the underloops or tubes are best drilled by packing the brass tubewith a wooden mandrel which… … Fig. 152—A complete marine Ijoiler of the t3rpe shown in Fig. 147 and easy to work that no particular trouble will be experi-enced in bending it to the required loop-shape. Thereader will notice that the loops are in the form of horse-shoe magnets with one leg shorter than the other. Theloops are…
