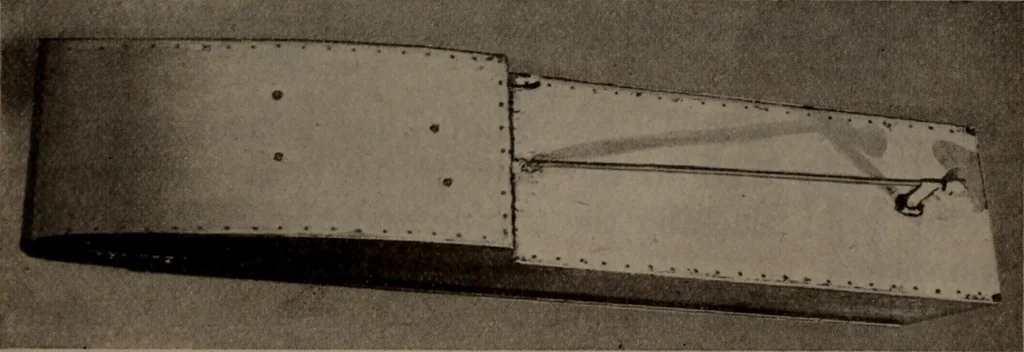

Fig. 160—Showing the power plant of Elmara unaffected by moisture. The pattern of the sides of theboat are first cut out of paper and this paper is pastedon a piece of dressed mahogany % inch thick. The ma-hogany is then cut into shape. The bow piece is cut outof solid mahogany and shaped as shown… … Fig. 161—The bottom of the boat Square mahogany strips are then cut out and fastenedto the inside of the side piece by means of shellac and%-inch brass brads. The bottom of the craft is madeof No. 22 gauge sheet aluminum and this is fastened tothe square mahogany strips, as the sides of the boat…
