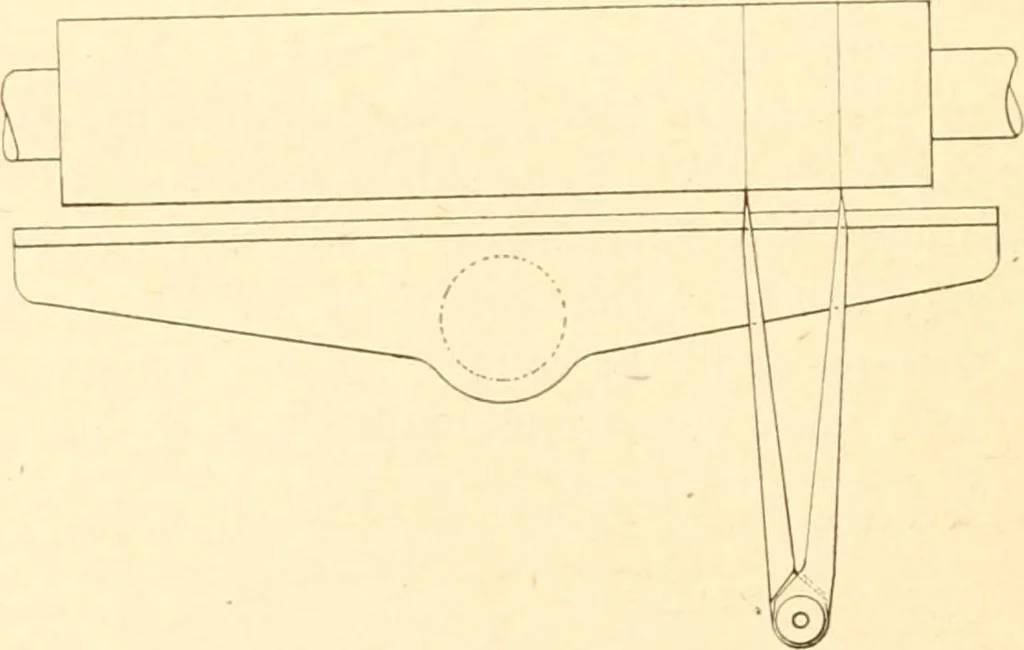

oceed withthe work as in Exercise No. i until a parallel cylinder is pro-duced. Then with the compasses set at ^ inch place one pointat one end of the cylinder, the other point extending towardthe other end, and the compasses resting across the tool-rest.Alark a line ^ inch from the end. Next place… … Fig. 115. has been reached. After the lines are scribed around thepiece >^4 inch apart, the skew-chisel point is next used to make MANUAL TRAINING 67 incisions at the lines drawn, as shown in Figf. 116. Cut theseV shaped incisions }s inch deep and round up with the heel / M li^^4 Fig. 116. of…
