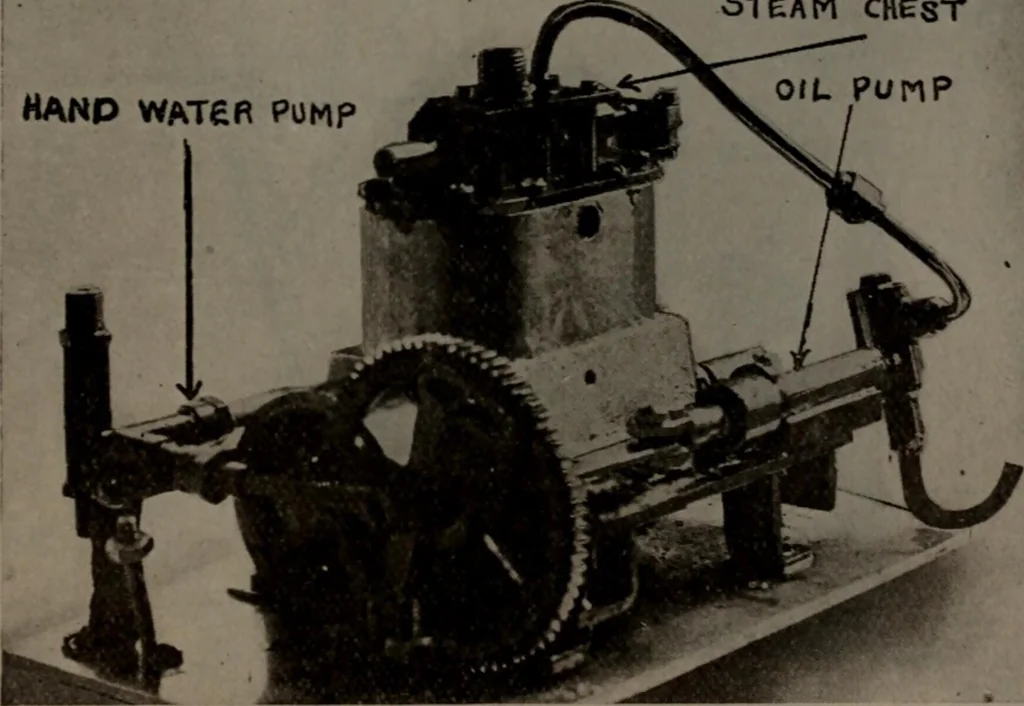

led completely through the top of the pistons toaccommodate the wrist pin, which is a small piece of coldroll steel rod of the proper size. The ends of the wristpin are filed to conform mth the internal outline of thecylinder and finished off smoothly so that they will notscratch the cylinder… … Fig. 168—The engine, showing the hand water pump and the oil pump this member to the crankshaft. A small universal jointis placed on the crankshaft just back of the bevel gearand this is also pinned into place mth as heavy a pin asthe quarter-inch shaft mil allow. OA\ing to the fact thatthis…
