Model making; including workshop practice, design and construction of models, a practical treatise for the amateur and professional mechanic .. (1919)

Yates, Raymond F. (Raymond Francis), 1895- ed · New York, The Norman W. Henley Pub. Co. · leaf 303

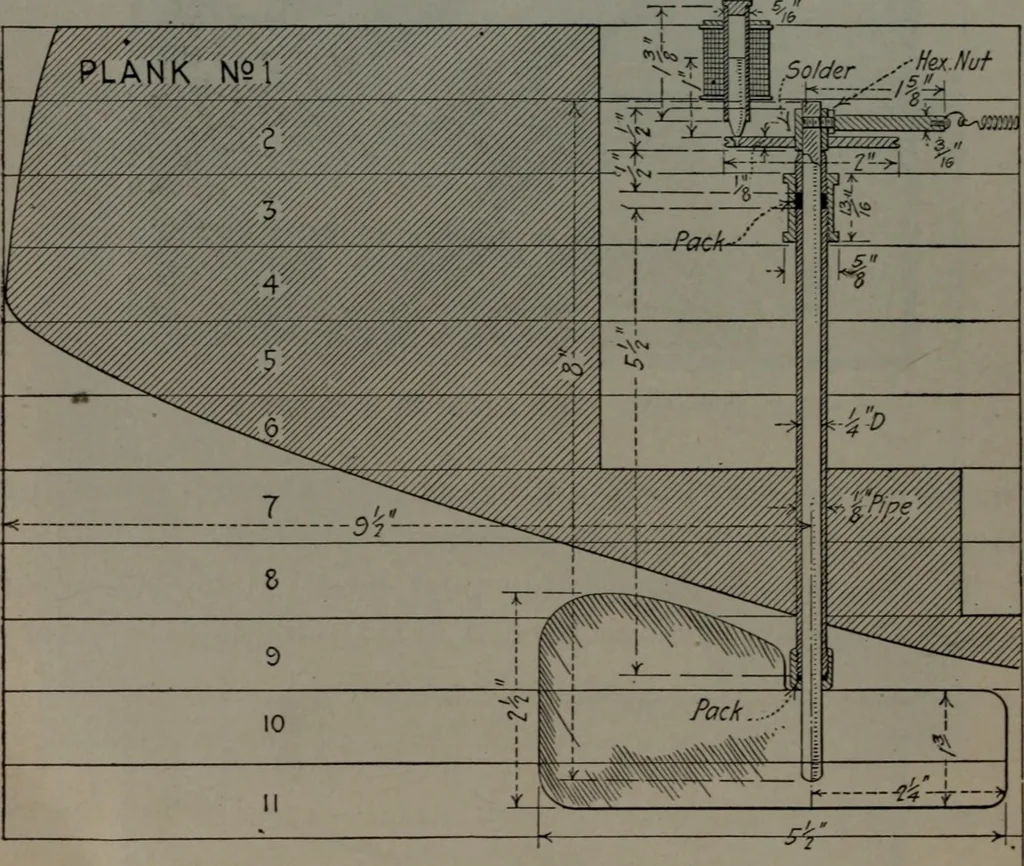

An illustration from Model making; including workshop practice, design and construction of models, a practical treatise for the amateur and professional mechanic .., 1919, leaf 303 — -struction and assembly of post and disc is clearly shownin the detail drawing, Fig. 210. The hub of the disc issweated with solder to the disc. The projecting arm of 300 Model Engineering the post is threaded into the latter and tightened bymeans of the lock nut showTi. The function of this… … rig. 210—Section through the stem of the hull, showing the arrangementof the rudder mechanism to one side of the neutral position of the rudder. Mounteddirectly above the disc, see Fig. 210, is a small solenoidin which a plunger of iron slides freely. The lower endof this plunger is conical in…
