Model making; including workshop practice, design and construction of models, a practical treatise for the amateur and professional mechanic .. (1919)
Yates, Raymond F. (Raymond Francis), 1895- ed · New York, The Norman W. Henley Pub. Co. · leaf 354

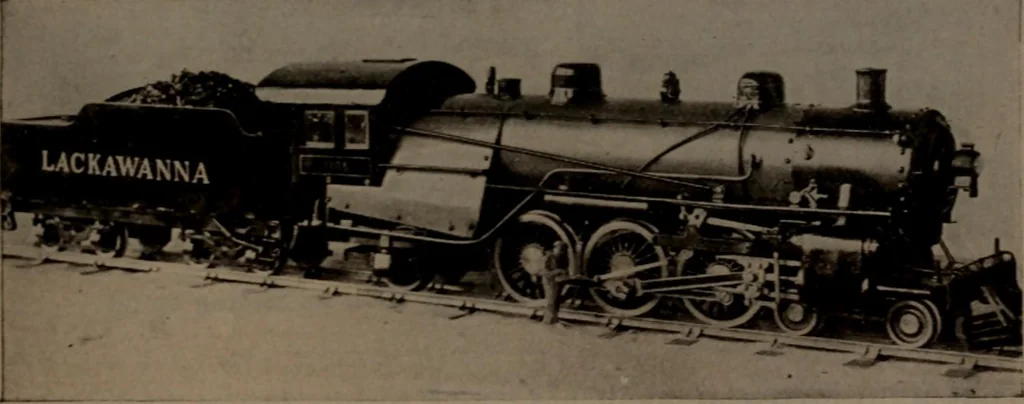

ny arrangement that may be desired. The currentcollecting mechanism, of course, depends upon the dis-position of the third rail. CHAPTER XXVin A MODEL STEAM LOCOMOTm: The locomotives prototype—General design—Construction—Fittings. The model described is of a Delaware, Lackawanna& ^Vestern,… … Fig. 282—The Lackawanna locomotive tender 165,700 pounds in working order, and having acapacity of 14 tons of coal and 8,000 gallons of water. The construction of the model is started ^^ith themain frames, which were made of %6-incli cold rolledsteel, drilled, filed and sawed but to represent the…
