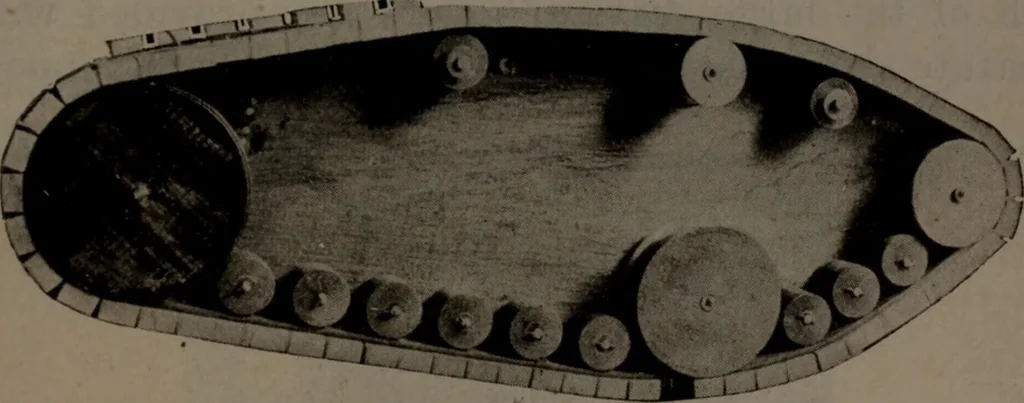

urning lathe, the rollers may be ob-tained from a planing mill. The bigger rollers are pro- A Model Caterpillar Tank 367 vided with flanges which keep the belt in the proper po-sition, the smaller rollers merely acting as supports.The small rollers are held in place by i^-inch cold rollrods… … Fig. 295—The model tank with the sides removed small washer is placed over the threaded end of the rod,and this comes to rest against the shoulder. The rod isthen placed in the hole in the wcjden side and a nutscrewed on the opposite side. This holds the rod rigidlyin place and the roller can then…
