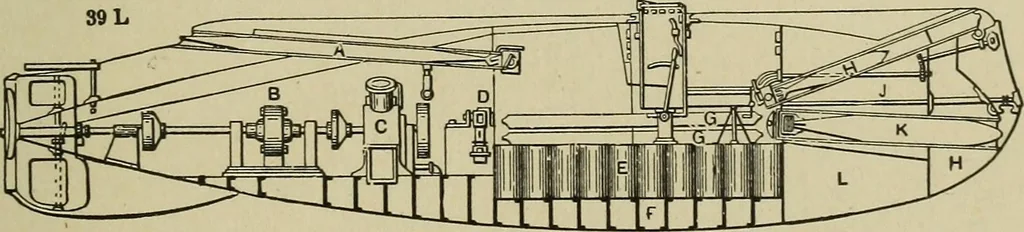

e 8 driven by compressed air contained in the cylindrical tank i ; m, twoscrew propellers driven in opposite directions by reversing bevel gears tokeep the torpedo from turning over ; h, shaft ; g, /, steering-apparatusconnections from electric steering gear, a, b, c; k, fuse ; /, explosivecharge ;… … E, storage battery; F, oil and water tanks; G, compressed air cham-bers ; H, gun-cotton shell in the aerial torpedo gun; J, magazine; K,Whitehead torpedo and tube ; L, trimming tank, oil and gasoline tank atH under the bow. In the Holland submarine boat the gasoline engine and the dynamoare…
