Modern American locomotive engines; their design, construction and management. A practical work for practical men (1883)
Edwards, Emory, b. 1841 · Bridgeport, Conn., Frederick Keppy · leaf 210

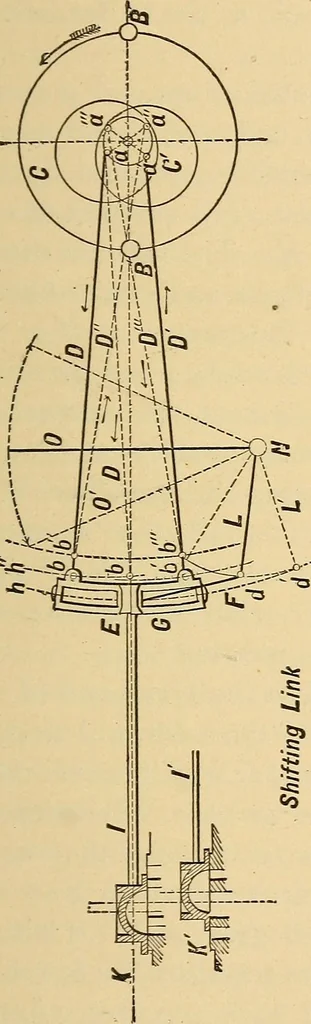

the piston. C, andC are the fore and back eccentrics, which have theirrespective centers at a and a when the crank pin is atB^ and at a and a when the crank is at B. The fore and back eccentric rods are, respectively,at D, and D, when the crank is at j5, and at D andD\ when the crank is at B. E, is…
