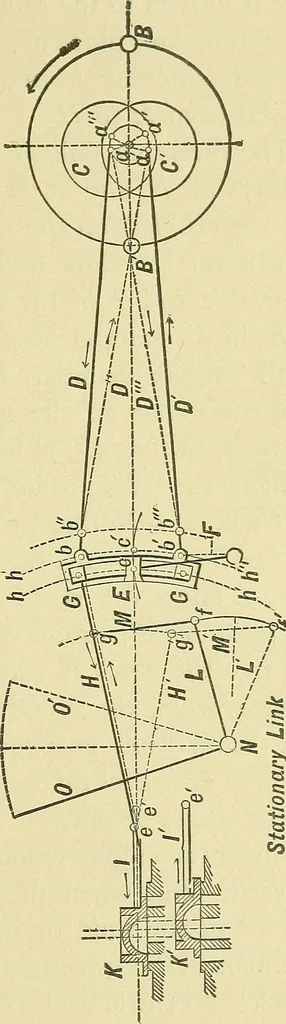

Fig. 63. Fig. 62. 200 LOCOMOTIVE ENGINES. link is curved to the radius of the radius link H\ andthe radius Hnk block G, slides in the curved groove ofthe link, moving from G to G, as the radius link ismoved from H to H. The reversing link M is pivoted at one end, g^ to theradius link H, and at its…
