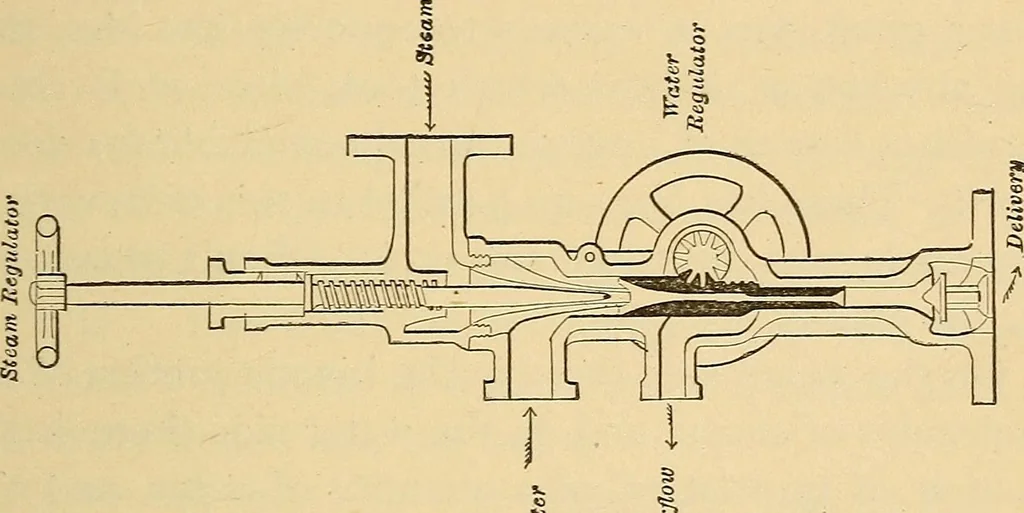

i INJECTORS. 2 I 5 corresponds to A B in the elementary diagram, andby turning the wheel marked water regulator thetinted sliding tube is brought up or down, so as toregulate the supply of water which is sucked up bythe inducing action of the steam. There is here,therefore, precisely the apparatus… … Fig. 70. At one end of the injector is a valve opening out-wards, leading to the flanged and marked * delivery,which is in direct communication with the boiler.This valve is shown open in the figure, but it is closedby the pressure in the boiler when the injector is notat work. Looking again at…
