Modern American locomotive engines; their design, construction and management. A practical work for practical men (1883)
Edwards, Emory, b. 1841 · Bridgeport, Conn., Frederick Keppy · leaf 215

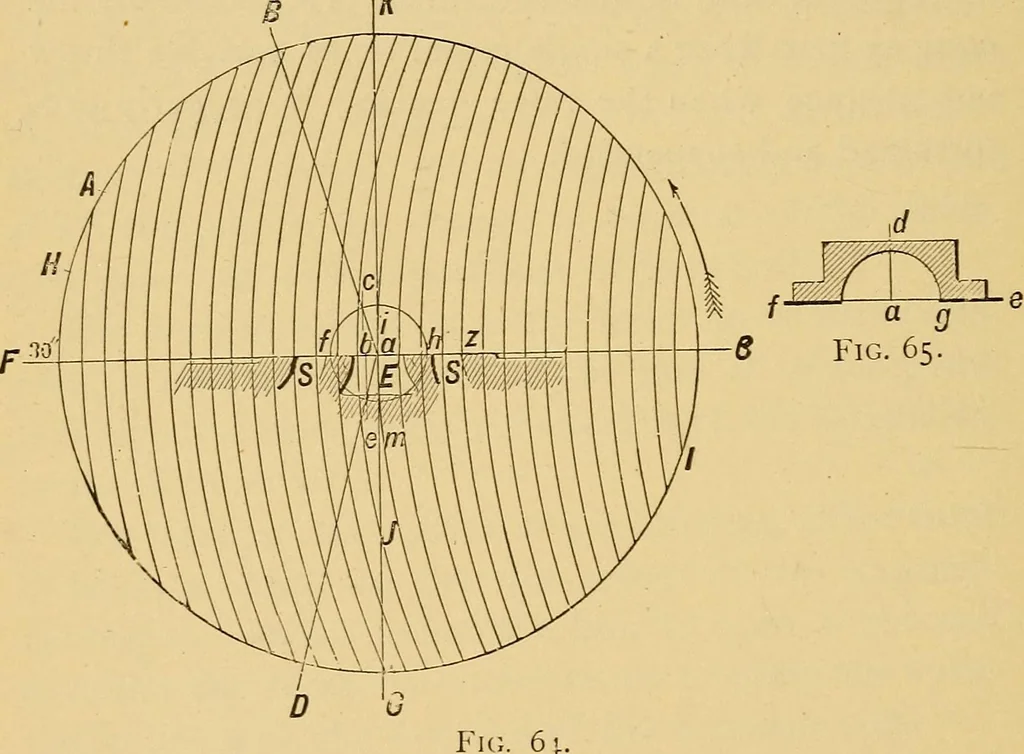

imilar way. The motion of the valve by the stationary and theshifting links and double eccentrics, is substantially thesame as that from a single eccentric of variable throwand advance, when the valve gearing is properly pro-portioned and suspended. CHAPTER XVI. VALVE MOTION DIAGRAMS. The outside… … resent the rods length. S S, in Fig. 64, are the steamports, E the exhaustport, and X X the bridges. Fig.65 is a sectional elevation of the valve divided by the (204) VALVE MOTION DIAGRAMS. 20$ line a d. The valve drawing is cut out at the hne/<?,and placed on the line representing the…
Locomotives
