Modern cabinet work, furniture & fitments; an account of the theory & practice in the production of all kinds of cabinet work & furniture with chapters on the growth and progress of design and construction; illustrated by over 1000 practical workshop drawings, photographs & original designs (1922)
Wells, Percy A, Hooper, John, b. 1882 · Philadelphia, J.B. Lippincott Company · leaf 150

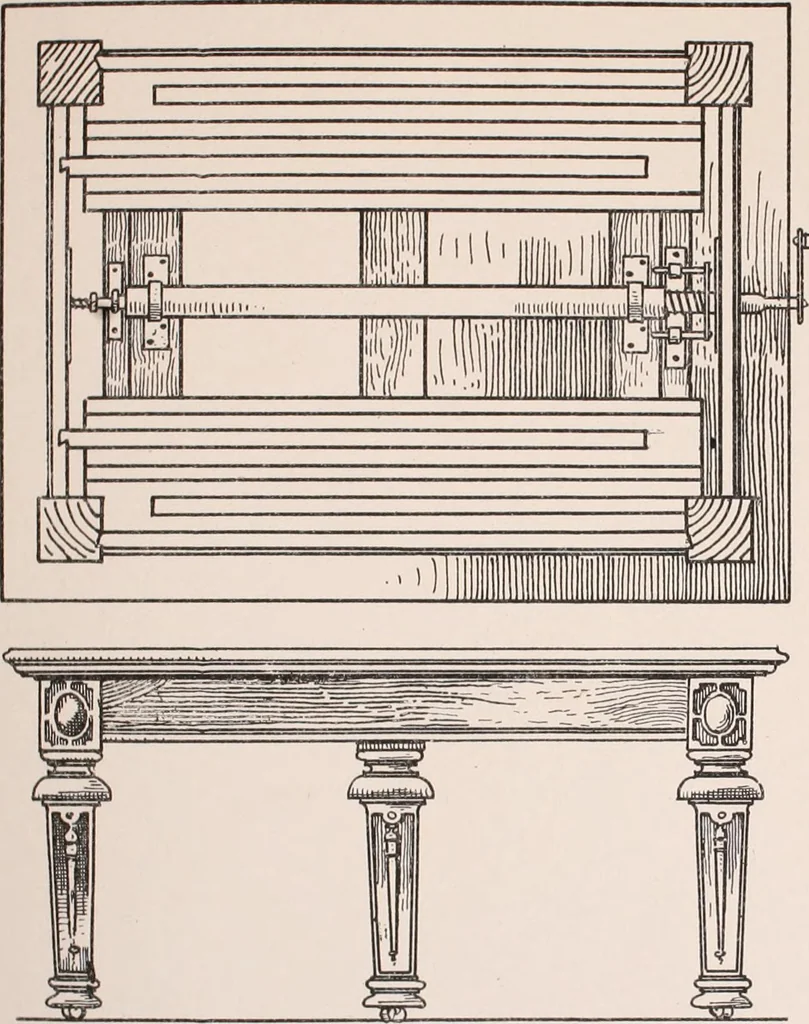

g ; iron pins are fixed to thoseunderneath (see sectional detail), and they stop against plates screwed to theoutside sliders. Dining table clips fixed in the grooved edges of sliders forman effective stop for the double sliders, and also bind the pieces together (seealso sectional view). When… … vie^. V/ITH-T^BLE-TOP-REMOVED • • Enlarged- det-ail-of-sliders- nra SHEWING-U5E-^^ OP-CLIPS- • £1= IRON-STOP - -E> = I^ON- PLATE •C = CROSS* R/qiL- •
Cabinetwork · Furniture making
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
