Modern cabinetwork, furniture & fitments; an account of the theory & practice in the production of all kinds of cabinetwork & furniture, with chapters on the growth and progress of design and construction; (1910)
Wells, Percy A, Hooper, John · London, B.T. Batsford; New York, Jone Lane company · leaf 150

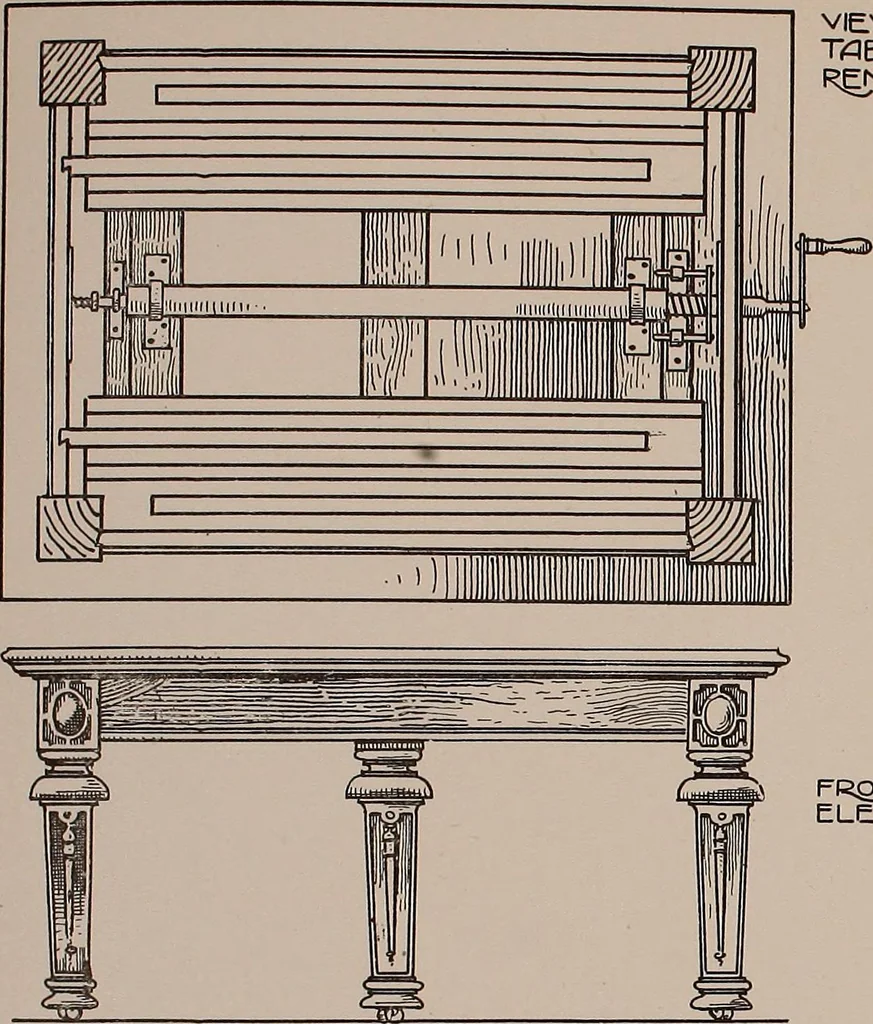

ron pins are fixed to thoseunderneath (see sectional detail), and they stop against plates screwed to theoutside sliders. Dining table clips fixed in the grooved edges of sliders forman effective stop for the double sliders, and also bind the pieces together (seealso sectional view). When making… … TABLE-TOP*REMOVED• • ENLARGED- DET-AIL-OF-SLIDERS-SHEWING-U5E-OFCLIPS- • . (\ = IRON-STOP • -E>=l(^ON-PLATE*C=CROSS«Rjqil_. ■
Cabinetwork · Furniture
