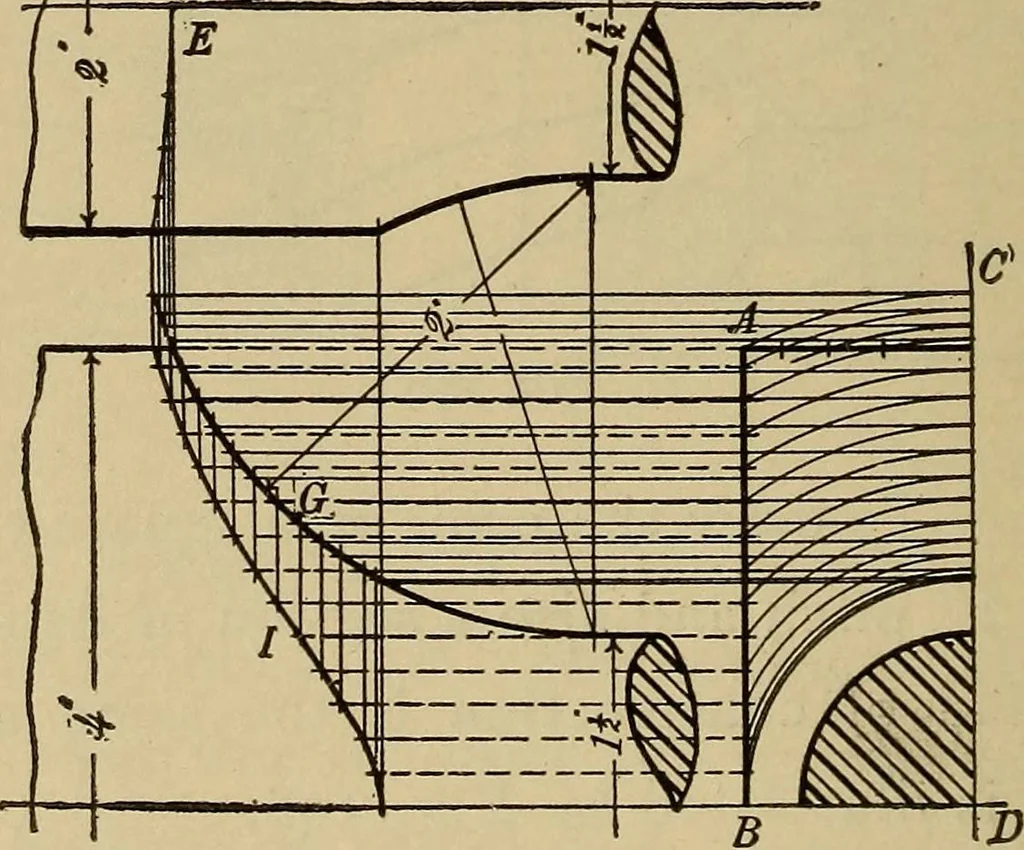

Fig. 140.Figs. 140, 141, and 142 show examples of engine con-necting rod ends where the curve / is formed by the inter- tH-tt d: … Fig. 141. section of the flat stub end with the surface of revolution ofthe turned part of the rod. OR THOGRA PHIC PROJECTION. I03 The method of finding the curves of intersection are soplainly shown by the figures that a detailed explanation isdeemed unnecessary.
