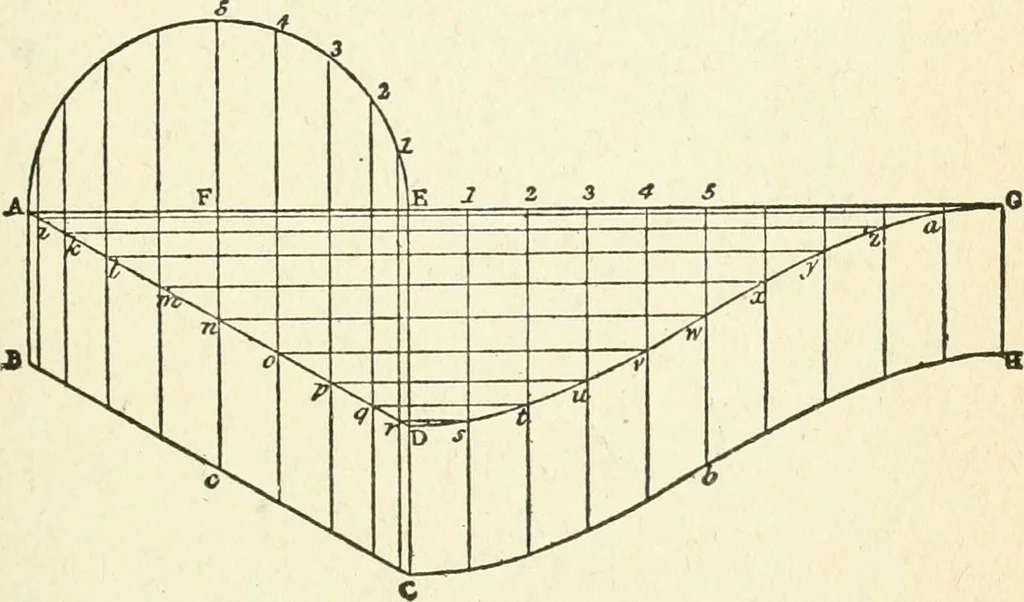

r s, t, u, v, &c. produce A D, and the lines1 a, 2 b, 3 e, &c., perpendicular to D F. To these lines SOLID GEOMETRY 105 transfer the length of the corresponding lines inter-cepted between A D and B C, that is, to la transfer thelength p z, to 2 b transfer o y, and so on, by drawingthe lines… … Fig. 74. To find the covering- of a cylinder contained betweentwo oblique parallel planes. Let A B C D (Fig. 74) be the seat of the generatingsection. From A draw A G perpendicular to A B, andproduce C D to meet it in E. On A E describe the semi-circle, and transfer its perimeter to E G, by…
