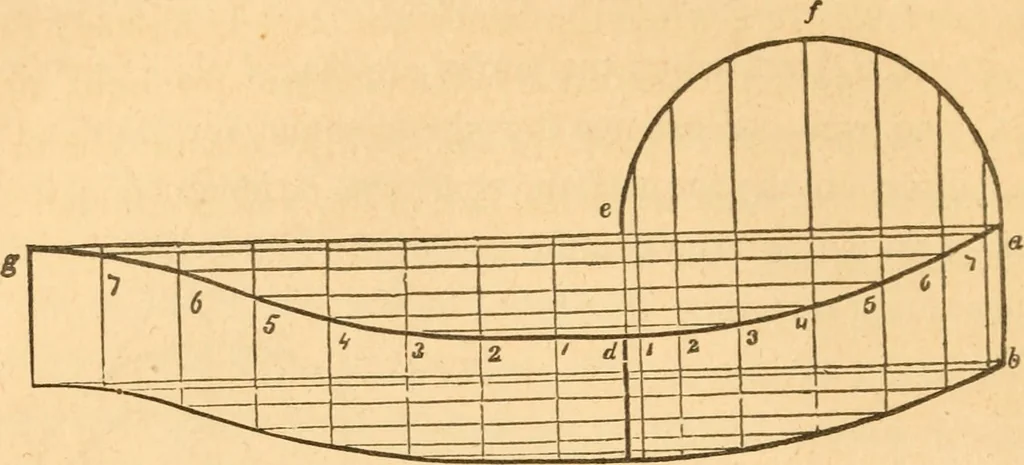

ines tomeet corresponding perpendiculars from eg; then those pointsof intersection will give the curve line, d g, which will be theone required for the edge of the soffit. The other edge, c A, isfound in the same manner. 355.— To find the form of the soffit for circular window-heads^ when the face… … Fi,^ x:53. Proceed as in the foregoing article to obtain the line, d g ; thenthat will be the curve required for the edge of the soffit; theother edge being found in the same manner. If the given vertical section be taken in a line with the face ofthe wall, instead of at right angles to the face of…
