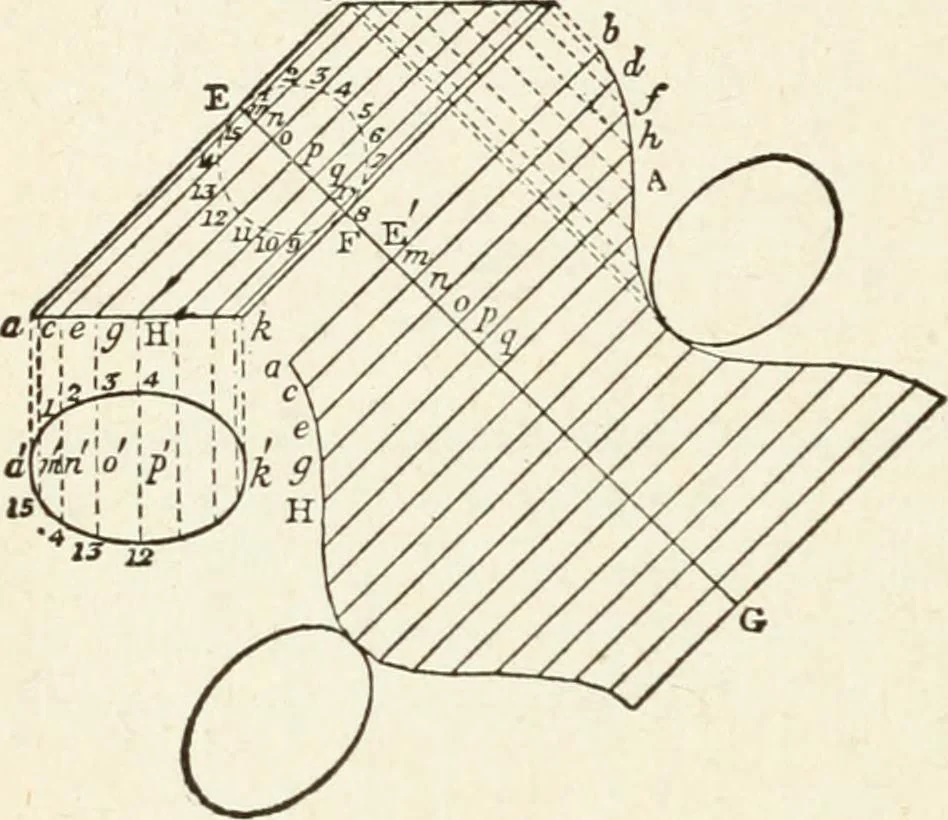

t in E. On A E describe the semi-circle, and transfer its perimeter to E G, by dividingit into equal parts, and setting off corresponding di-visions on E G. Through the divisions of the semicircledraw lines at right angles to AE, producing them to 106 MODERN CARPENTRY meet the lines A D and B C, in… … Fig. 75. &c., parallel to A G and where these intersect the per-pendiculars from E G, in the points a, z, y, x, w, u, &e.,trace a curved line G D, and draw parallel to it thecurved line H C; then will D C H G be the developmentof the covering of the semi-cylinder A B C D. To find the…
