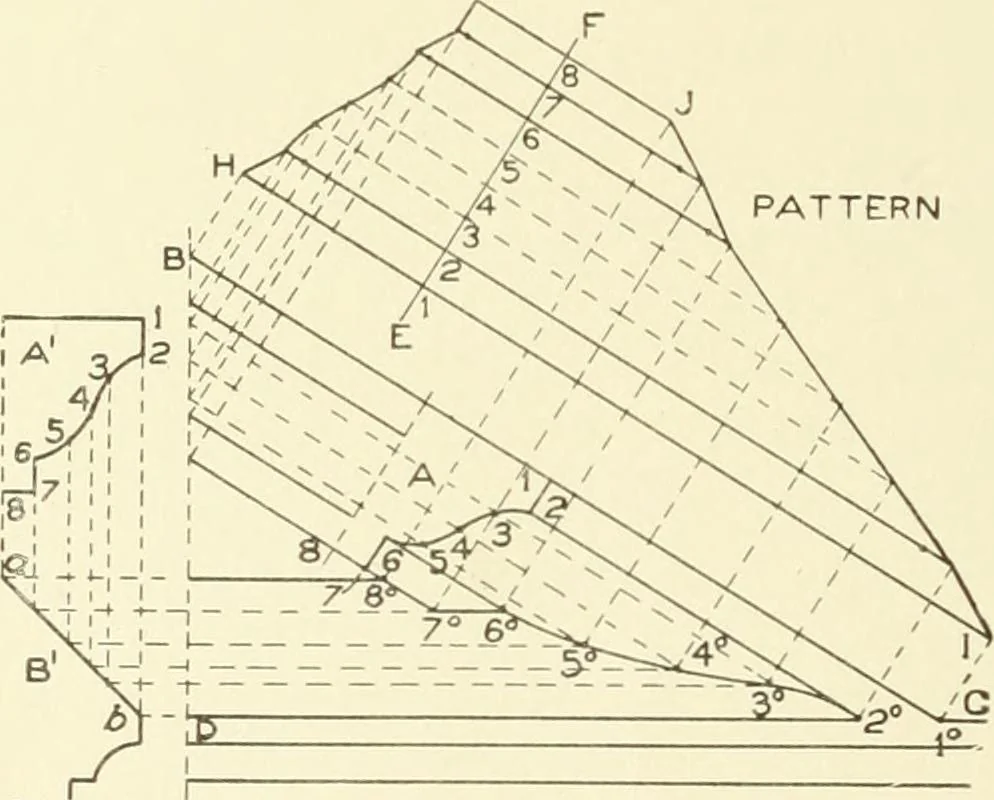

the section of thehorizontal moulding B^ with the washa b. From this section project lines,and draw the part elevation D C.Fig. 298. Knowing the bevel tlie gable is to have, draw C B, in this case the top line of the moulding. Draw asection of the gable mould, as A, which divide into equal parts… … SECTION ELEVATIONFig. 299. number of spaces as A; and from the various divisions in A* dropvertical lines intersecting the wash a b as shown, from which pointsdraw horizontal lines intersecting lines drawn parallel to B Cthrough similarly numbered points in A, at 1° to 8°. Trace a linethrough these…
