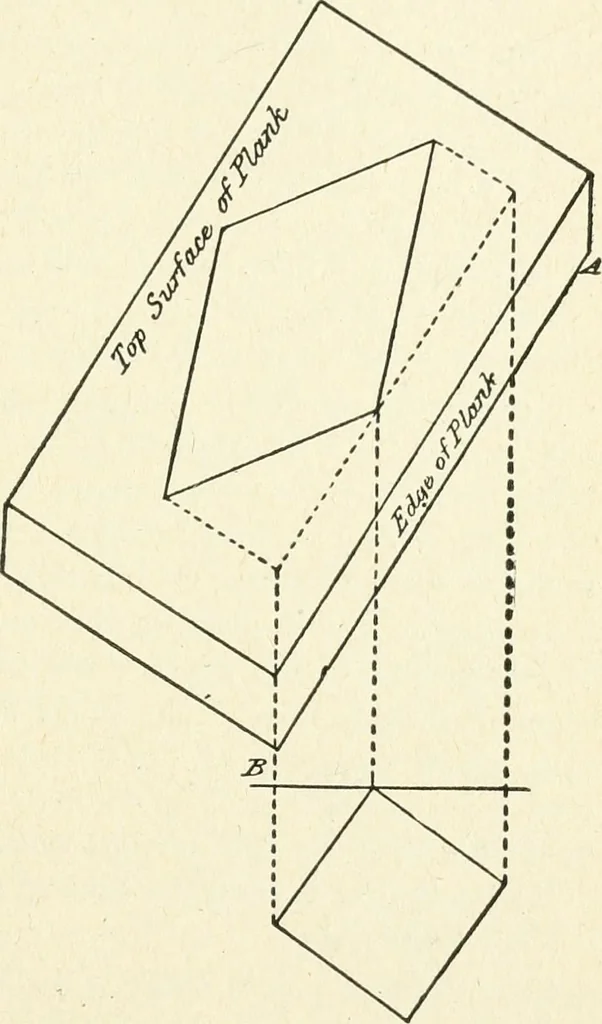

Fig. 9. Fig. 10 shows the sides of a square bar which maybe any length. The bar is to stand perpendicular, andpass through a plank that inclines at A B; the learner PRACTICAL SOLUTIONS 143 is now required to show on the surface of plank theshape of a mortise that shall exactly fit the bar. … Fig. 10. To solve this the student is left to exercise his ownintelligence. The problem may be clearly demonstrated by acard-board model; it being cut, and the parts pro- 144 MODERN CARPENTRY jected from the flat surface will represent the plank,and show the mortise in it standing directly over…
