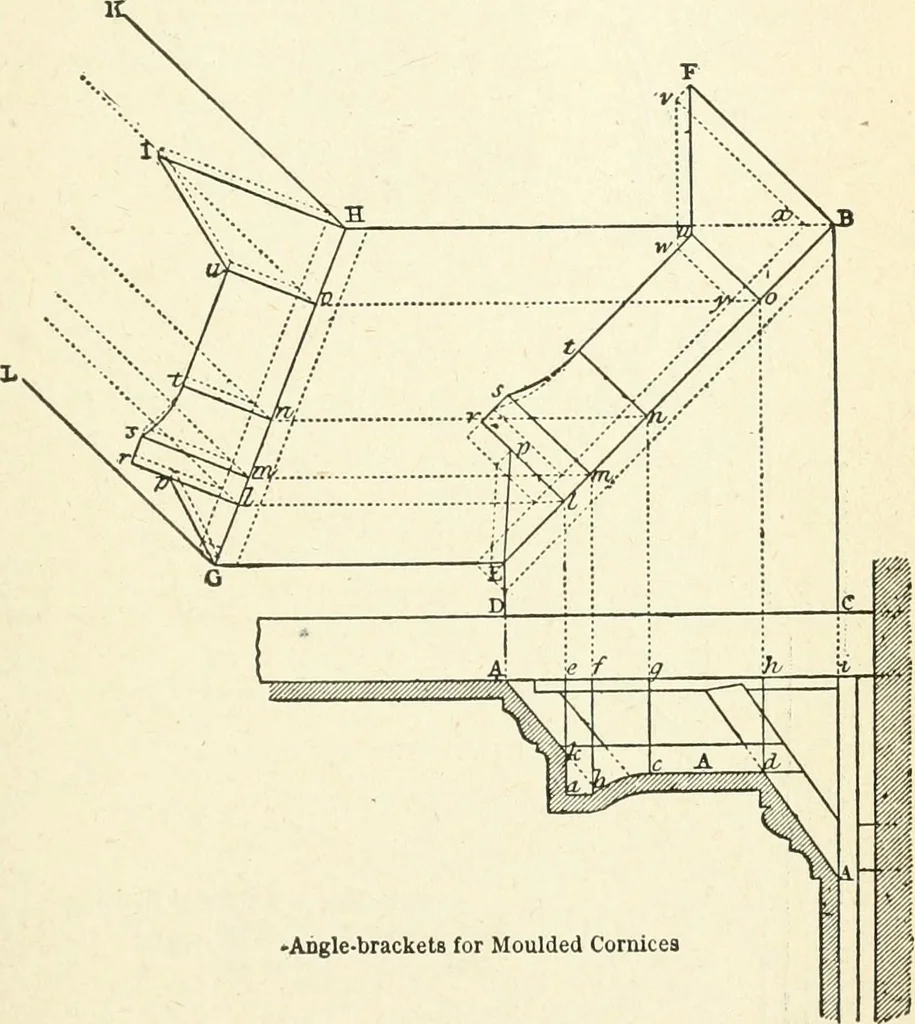

n o B. Draw the lines E G, G L B H, and H K,representing the plan of the bracketing, and the par-allel lines from the intersection 1 m n o, as showndotted in the engraving; then make B F and H I per-pendicular to E B and G H respectively, and eachequal to i A, o u to h d, n t to g c, m s to f b, 1… … ■Angle-bracketB for Moulded Cornices Fig. 20. To find the ang-le-bracket at the meeting of a concavewall with a straight wall. Let A D E B (Fig. 21) be the plan of the bracketingon the straight wall, and D M GE the plan on the cir- 156 MODERN CARPENTRY cular wall, CAB the elevation on the straight…
