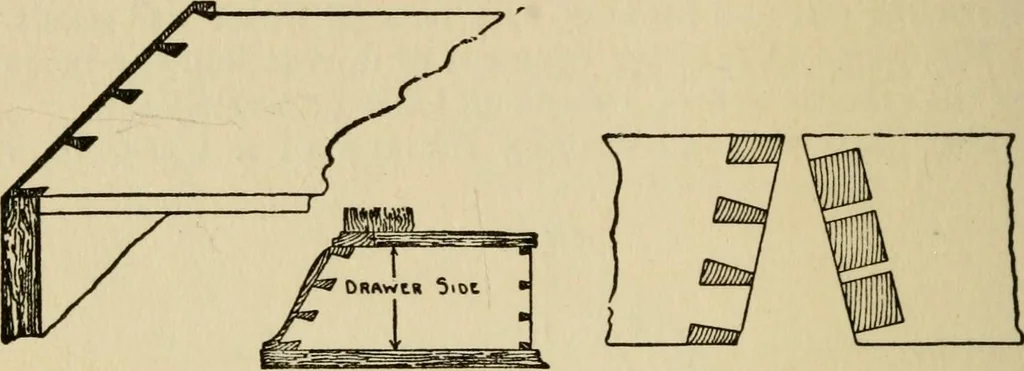

cut. Fig. 306 shows the joint separated. Fig. 307.—Bevelled dovetaiHng when the centre Hneof the pins is parallel to the edges of the work, used formaking hoppers, food troughs, knife boxes, etc. Fig. 308.—An example of oblique dovetaiUng, as usedon hoppers when one piece is vertical and the… … Fi^- 303-—Lap- Fig. 304.—Jewel Fig. 305.—Bevelled Dovetailing. Drawer Side. Dovetailing. line, thus forming the lid. It will be noticed that a speciallywide dovetail pin must be left so as to form part of thelid and part of the lower portion.
