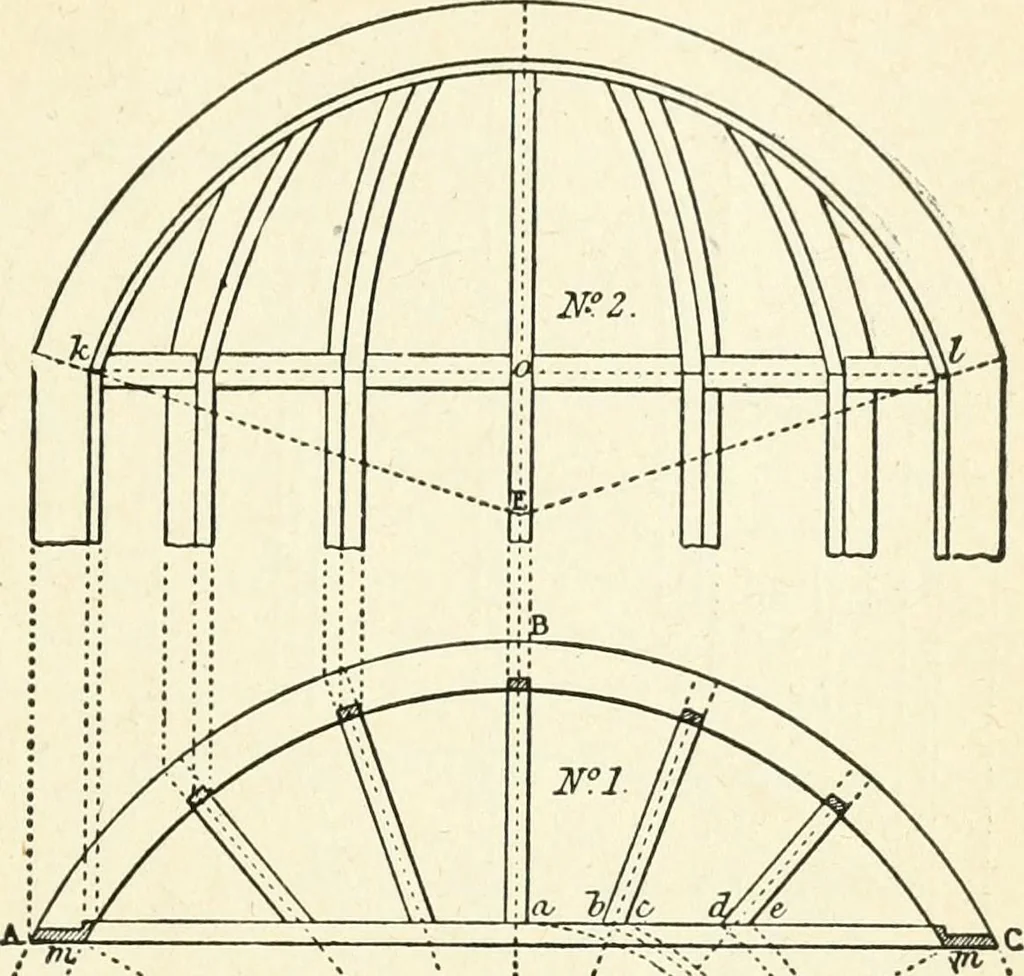

e curves m 1, AG, C H, cutting the line GH;and make D F equal to E 0, No. 2. From F as a centredescribe the curves 1 p 1 and G I H for the depth ofthe ribs; and this is the true curve for all the backribs. To find the lengths and bevel of the ribs:—From thecentre D describe the quadrant and arcs a… … .•j}\.
