Hartford Steam Boiler Inspection and Insurance Company · Hartford, Ct. : Hartford Steam Boiler Inspection and Insurance Co · leaf 184

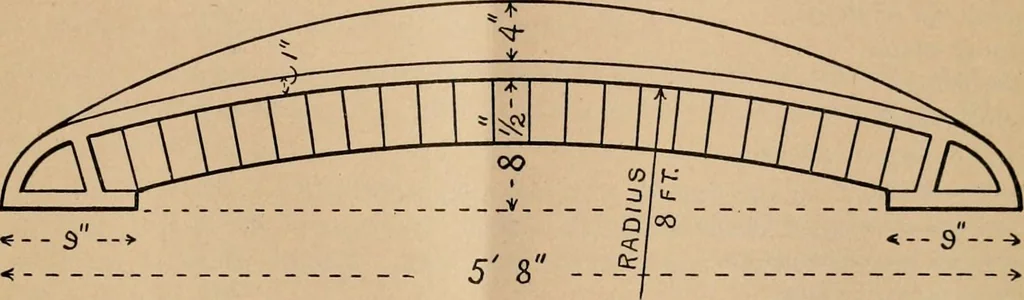

g against which the brick rest is 8 feet, just asbefore, and the apparent difference in this respect between the two cuts is due to thedifference in scale alone. In Fig. 1 we have shown the arches in position. Three of them, arranged side byside, are sufficient to cover the space between the boiler… … 5 8 Fig. 4. — Side View of Arch Bar for 42-Inch Boiler. In order that these arch bars may be durable and give satisfaction, the brick thatthey are to hold and support must be placed in position properly and securely. This isa matter of so much importance that it may be profitable to describe the…
Locomotives · Steam-boiler explosions
Internet Archive · Carnegie Library of Pittsburgh · Public Domain Mark 1.0. Free to use for anything.
