Modern carpentry and joinery : being a compilation of the very best things and most modern and practical methods known in the arts of carpentry and joinery (1910)
Hodgson, Frederick Thomas, 1836- · Chicago : F. J. Drake & Co. · leaf 185

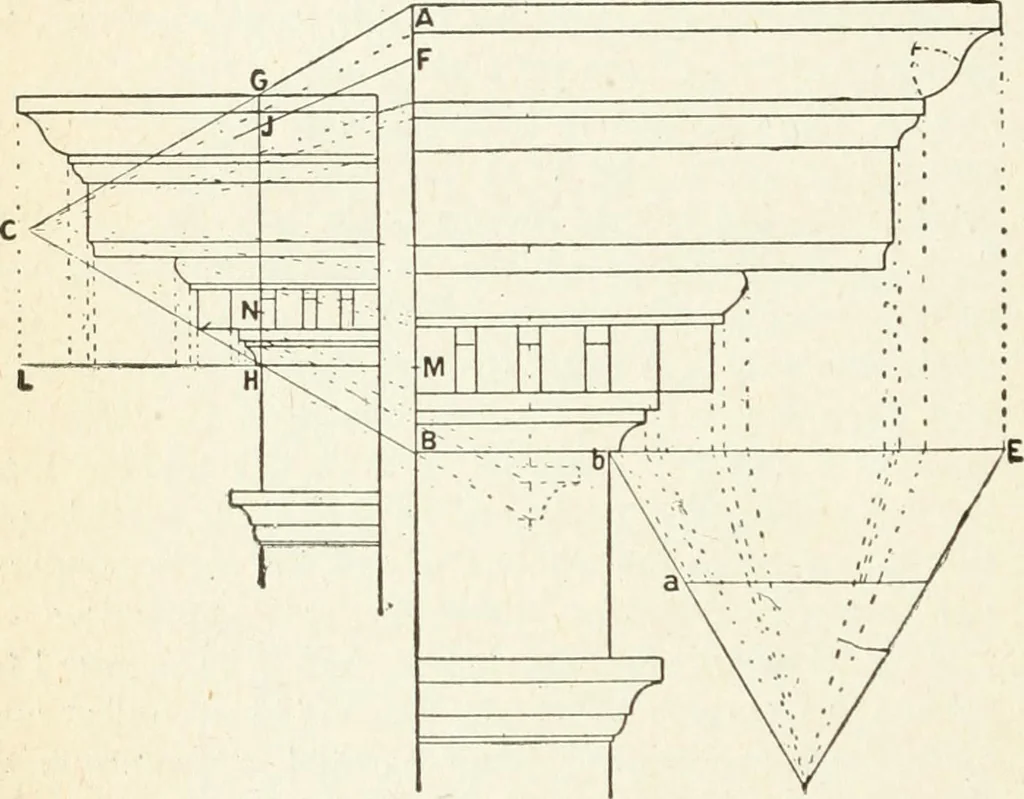

e. At the points where this line intersects theiuclined division lines, draw horizontal projectors cor-responding to the originals. To obtain their length 182 MODERN CARPENTRY or amount of projection, draw the horizontal line b E,Fig. 48, at the level of the lowest member of the cor-nice, and upon… … Fig. 49. Fig. 48. that shall bear the same proportion to b E that the lineGH bears to A B, place the length of b E on the lineB A from B to F, and draw a line from F to C: theportion of the line G H cut ofl from J to H is the pro-portionate length required. Set this length off parallelto b E within…
Carpentry
Internet Archive · Gerstein Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
