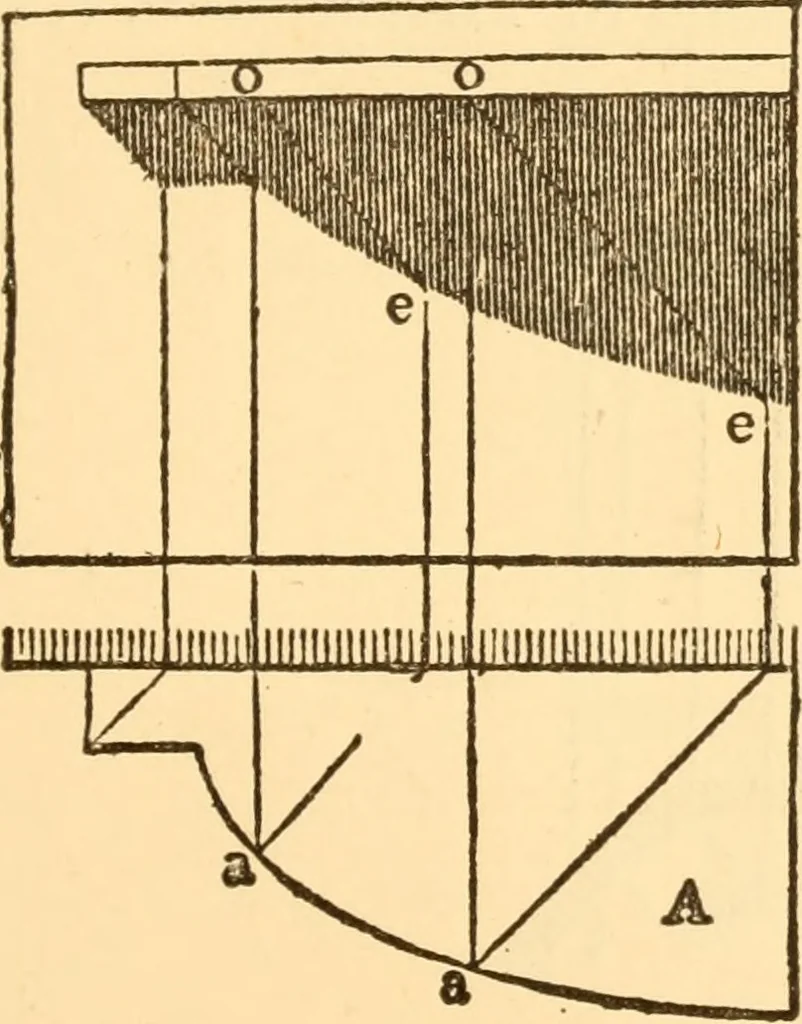

FiG. 429. Fig. 430. ing a line from d at the usual angle. In Fig. 429 join e and/; then ic and cc will define the shadow. In Fig: 430, fromo draw oi parallel with the shelf; join i and e; then ie andfc will be the shadow required. The projections in these several examples are bounded
