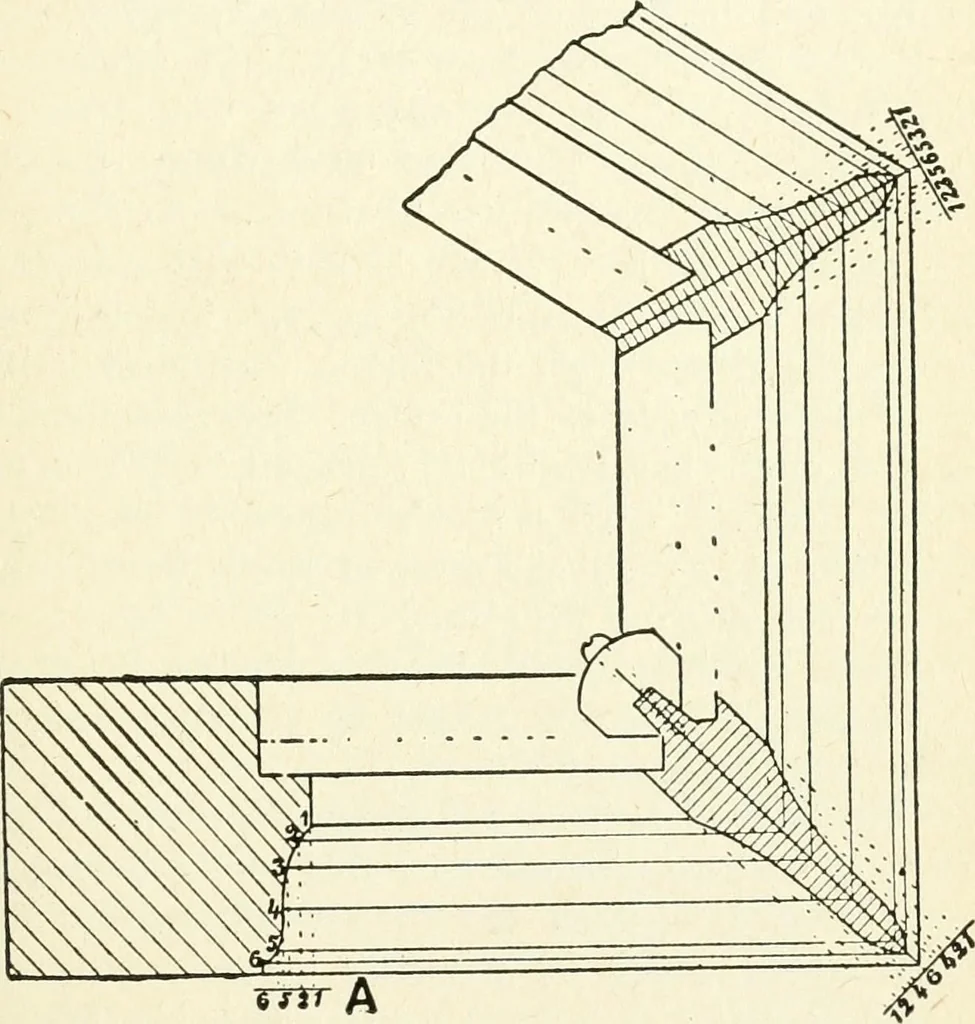

eat of the mitre. Upon a linedrawn through the centre of the curved moulding setoff divisions equal and similar to those on the straightpart, as 1 to 8 in the drawing. From the centre of the PRACTICAL SOLUTIONS 187 curve describe ares passing through these points, andthrough the points of… … Fig. 54. To Obtain the Section of a Sash Bar Raking in Plan.Fig. 54 represents the plan of a shop front sash withbars in the angles. On the left hand is shown the sec- 188 MODERN CARPENTRY tion of the stile or rail into which the bars have tomitre. Divide the profile of moulding into a numberof…
