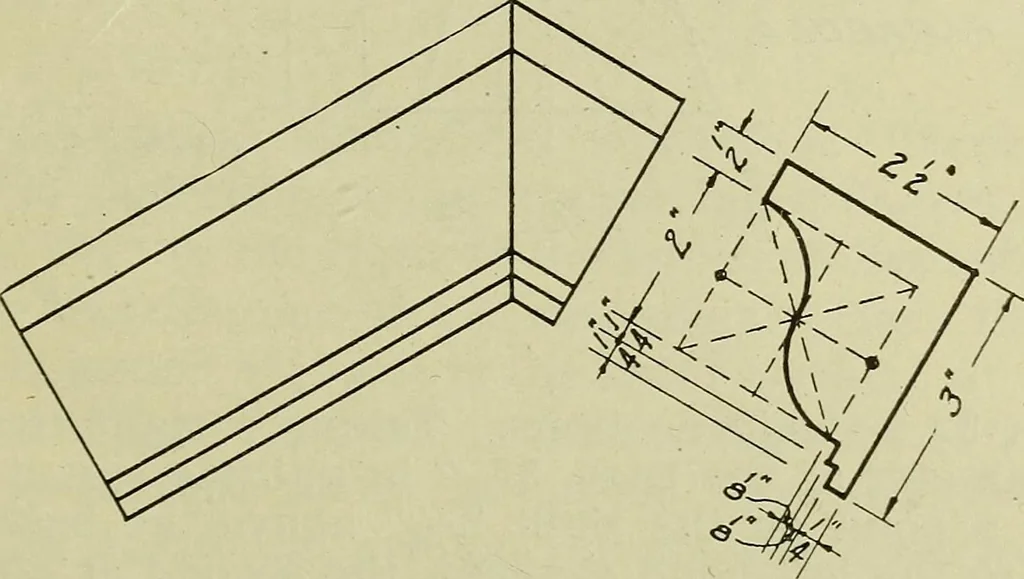

he longersides of the base parallel to V. The pyramid is cut by a plane,30° with H and perpendicular to V, at a point 1^ above thebase on the right. Prob. 28. Truncated Cylinder. A cylinder with baseparallel to H is cut by a plane, perpendicular to V, so that thecyhnder is 3 high on the extreme… … r/G. 32 Prob. 29. Make the stretch-out of the sheet metal re-turn, the bottom view of which is shown in Fig. 32. Scale,full size. 31 Prob. 30. Truncated Cone. A right circular cone, withbase parallel to H and 2%^ in diameter, is truncated by aplane, perpendicular to V and at 60° on the right with…
Projection
