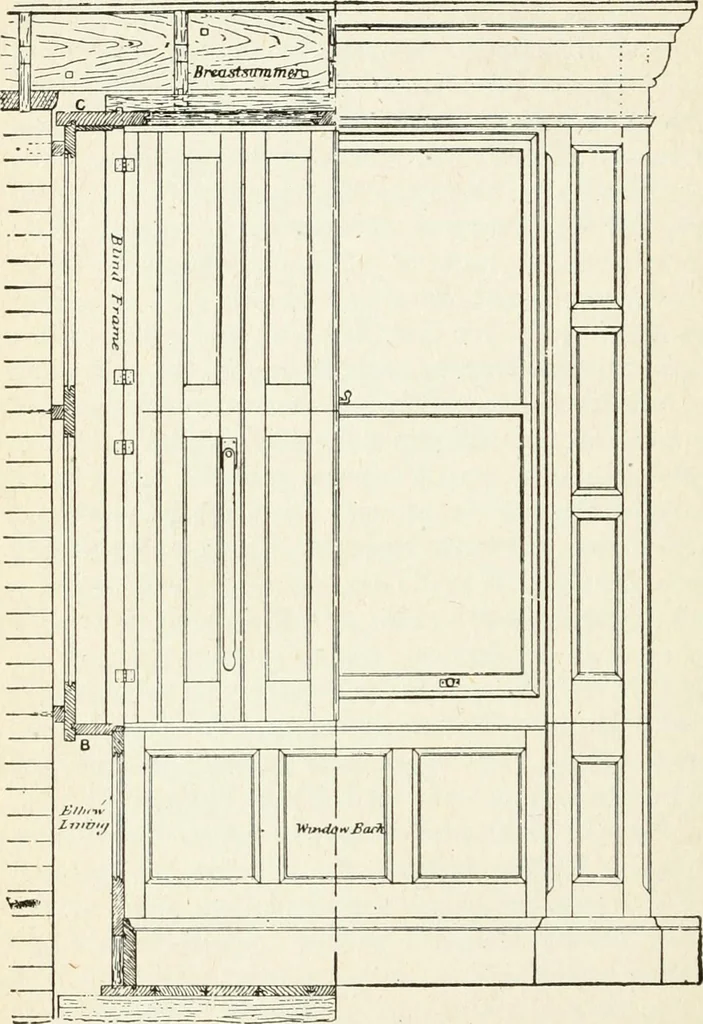

of boxings, at leasti/g in. should be allowed betweeii each shutter to pro-vide room for the fittings; the shutters are fastenedby a flat iron bar hung on a pivot plate fixed on theinner left-hand leaf, and haying a projecting stud atits other end which fits into a slotted plate, and it iskept in… … Fig. 55. PRACTICAL SOLUTIONS 191 Fig. 55 is a sectional elevation of a Window Fittedwith Boxing- Shutters having a cover flap and spacesfor a blind and a curtain. One-half of the elevationshows the shutters opened out and the front of thefinishings removed, showing the construction of theboxings,…
