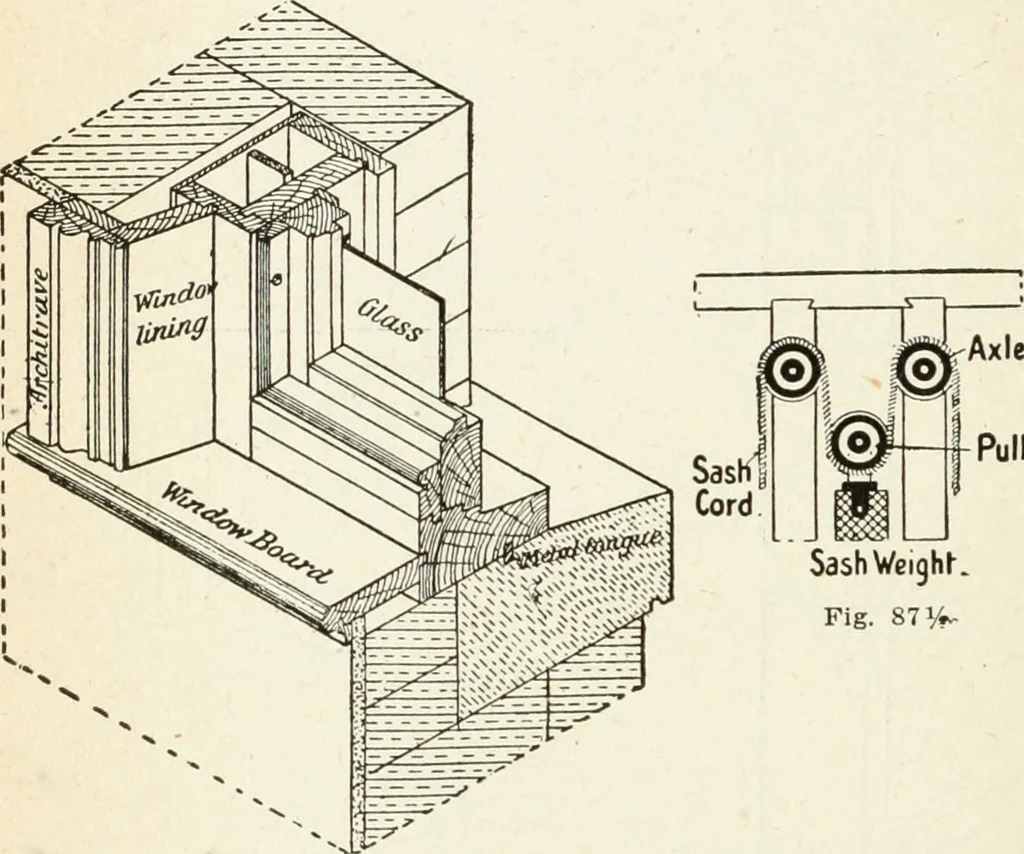

86Va. Weda& -Joints at ends of PulleyStyle. Fig. 86. often dovetailed as shown in Fig. 86. They are, how-ever, stronger if the styles are made a little longer,the projecting part being moulded, and mortise and 214 MODERN CARPENTRY tenon joints used as shown in Figs. 86 and 87. Theprojecting… … |®^AxlePulleij.Pulley. Sash Weight Fig. 87y^- aketch of one corner of a Sash and Frame VJindow.Fig. 87. window is known as a Double-Hung sash and framewindow. If one sash only slides, and the other is fixedin the frame, the window is Single-Hung. Figs. 78 to80 show the details of a sash and frame…
