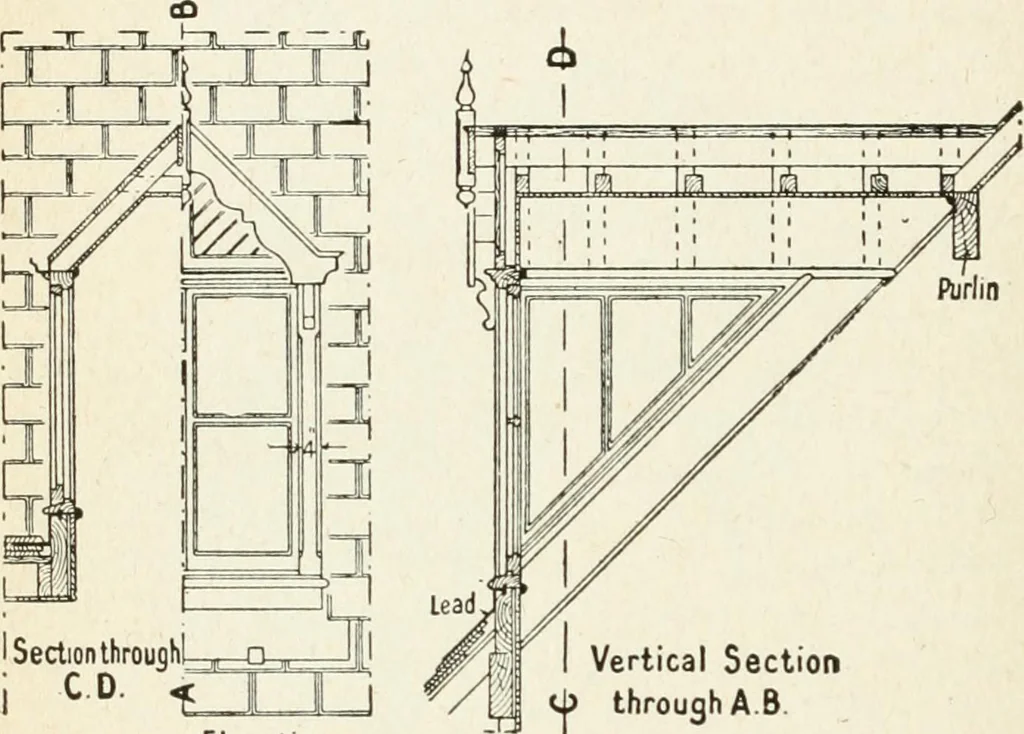

re connected to the main roof by othercrossrails and by Braces. This framework is surmount-ed by a Roof which may be either ridged, or curvedoutline, or flat. By arranging a ridged roof to over- 230 MODERN CARPENTRY hang, and adding suitable Barge Boards and Finial(Fig. 101) a dormer window may be… … I SectionIhrouqhlCD. ^ ElevationFig. 101, Vertical Sectiond> throushA.B. Fig. 102. As dormer windows are generally in exposed posi-tions, and the sashes are arranged as casements to open,their efficiency depends largely upon the perfection ofthe joints between the sashes and the frame. It…
