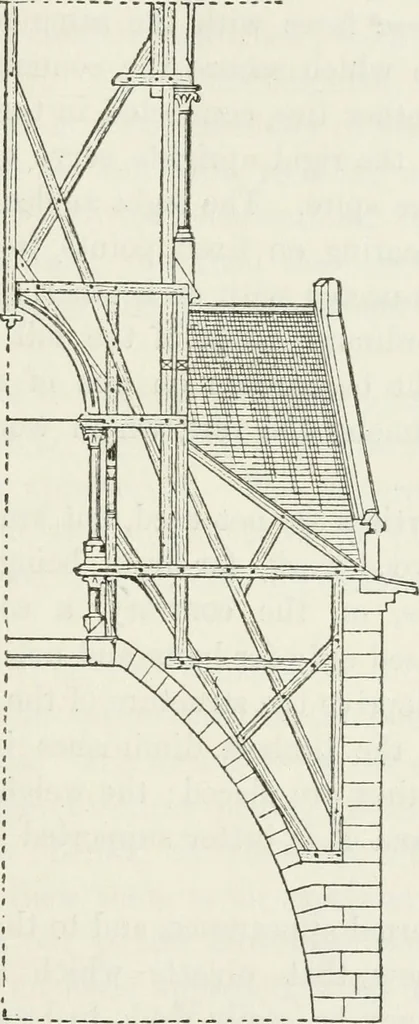

lower roofs. Fig. 66 shows the heightof the columns bearing the arches of the side aisles, and that ofthe vaults, as well as the general system of the construction. A 1 The architect is M. Cuypers. AMSTERDAM 113 lantern, which occupies the centre of the steeple, enlarges andlengthens the cupola of… … Fig. 67. — Details of the Timbers of the Spire. (Scale, .157 inch to the yard.) of the gables of the transept; the four others in the gutterswhich separate these gables; lower trusses, resting directly onthe piers and formed of braces bound together by diagonal ties,sustain the principal trusses,…
